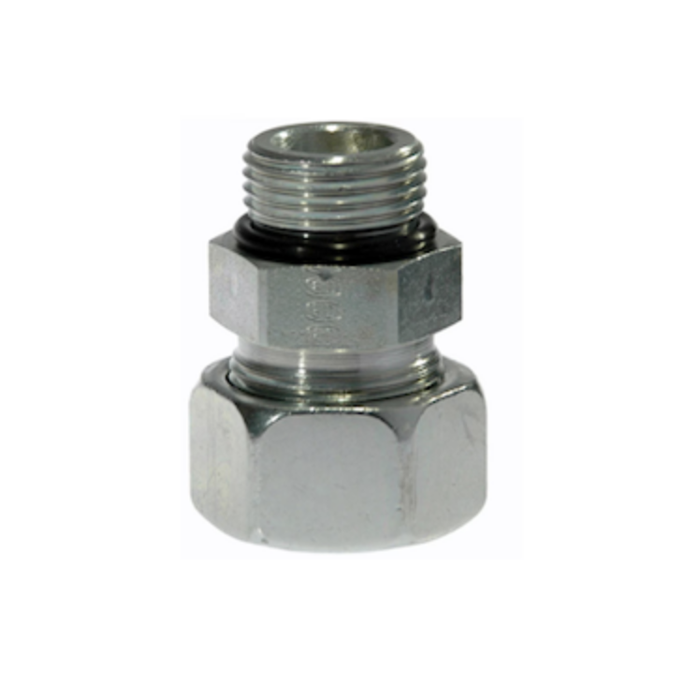

Nippiltengi GE UNF, gerð L - galvaníseruð.png

Nippiltengi GE UNF, gerð L - galvaníseruð

Galvaniseraður skerkónafittings fyrir háþrýstar vökvalagnir
Gerð L

Flokkar: Fittings, Lagnaefni, Skerkóna fittings, Stálfittings Brand: Parker

Available Options

Vörunúmer	Vöruheiti	Verð	Magn
14820807	GE 8L 7/16"
14821007	GE 10L 7/16"
14821209	GE 12L 9/16"
14821212	GE 12L 3/4"
14821214	GE 12L 7/8"
14821512	GE 15L 3/4"
14821514	GE 15L 7/8"
14821812	GE 18L 3/4"
14821814	GE 18L 7/8"
14822214	GE 22L 7/8"
14822217	GE 22L 1-1/16"
14822821	GE 28L 1-5/16"
14823526	GE 35L 1-5/8"
14824226	GE 42L 1-5/8"
14822814	GE 28L 7/8"
14821207	GE 12L 7/16"
14821012	GE 10L 3/4"
14821009	GE 10L 9/16"
14820608	GE 6L 7/16"
14820609	GE 6L 9/16"
14820809	GE 8L 9/16"

Lýsing

Breyta

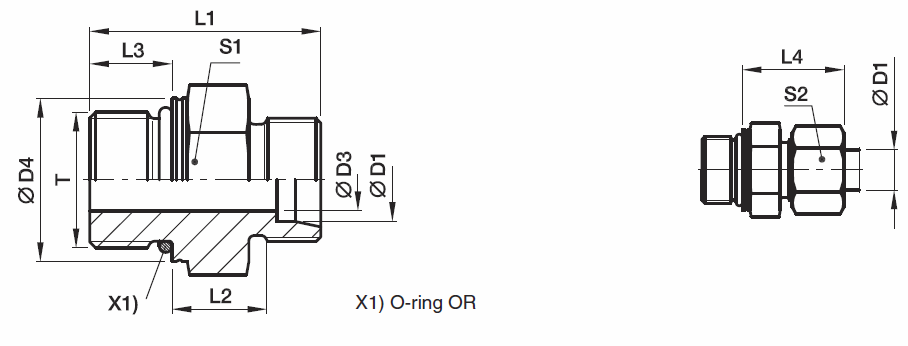

Vöruheiti	Röramál D1 mm	Gengjur T1 UNF	Gegnum borun D3 mm	Hæð L1 mm	Hæð L2 mm	Hæð L3 mm	Hæð L4 mm	Lykilmál S1	Lykilmál S2	Þrýstiþol BAR	Vörunúmer
Gerð – L
GE 8L 7/16″	8	7/16	5	26	10	9	25	17	17	315	14820807
GE 10L 7/16″	10	7/16	5	27	11	9	26	17	19	315	14821007
GE 12L 9/16″	12	9/16	7	28	11	10	26	19	22	315	14821209
GE 12L 3/4″	12	3/4	10	31	13	11	28	24	22	315	14821212
GE 12L 7/8″	12	7/8	10	34	14.5	12.7	29	27	22	315	14821214
GE 15L 3/4″	15	3/4	11	32	14	11	29	24	27	315	14821512
GE 15L 7/8″	15	7/8	12	35	15.5	12.7	30	27	27	315	14821514
GE 18L 3/4″	18	3/4	11	33	14.5	11	31	27	32	315	14821812
GE 18L 7/8″	18	7/8	14	35	14.8	12.7	31	27	32	315	14821814
GE 22L 7/8″	22	7/8	14	37	16.8	12.7	33	32	36	315	14822214
GE 22L 1-1/16″	22	1 1/16	18	39	16.5	15	33	32	36	160	14822217
GE 22L 1-5/16″	22	1 5/16	19	40	17.5	15	34	41	36	160
GE 28L 1-1/16″	28	1 1/16	18	40	17.5	15	34	41	41	160
GE 28L 1-5/16″	28	1 5/16	23	40	17.5	15	34	41	41	160	14822821
GE 35L 1-5/16″	35	1 5/16	23	43	17.5	15	39	46	50	160
GE 35L 1-5/8″	35	1 5/8	29	43	17.5	15	39	50	50	160	14823526
GE 42L 1-5/8″	42	1 5/8	29	45	19	15	42	55	60	160	14824226
Gerð – S
GE 8S 7/16″	8	7/16	4	31	13	11	30	17	19	630
GE 10S 9/16″	10	9/16	6	32	12.5	12	31	19	22	630
GE 12S 9/16″	12	9/16	6	32	12.5	12	31	22	24	630
GE 12S 3/4″	12	3/4	8	36	14.5	14	34	24	24	630	14831212
GE 16S 3/4″	16	3/4	10	35	12.5	14	34	24	30	400	14831612
GE 16S 7/8″	16	7/8	12	40	15.5	16	37	27	30	400	14831614
GE 20S 3/4″	20	3/4	10	42	17.5	14	42	32	36	400	14832012
GE 20S 7/8″	20	7/8	12	44	17.5	16	42	32	36	400	14832014
GE 20S 1-1/16″	20	1 1/16	16	46	17	18.5	42	32	36	400	14832017
GE 25S 1-1/16″	25	1 1/16	16	50	19.5	18.5	47	36	46	400
GE 25S 1-5/16″	25	1 5/16	20	50	19.5	18.5	47	41	46	400	14832521
GE 30S 1-5/16″	30	1 5/16	20	52	20	18.5	50	46	50	400	14833029
GE 30S 1-5/8″	30	1 5/8	24	52	20	18.5	50	50	50	400	14833026
GE 38S 1-5/8″	38	1 5/8	24	57	22.5	18.5	57	55	60	315
