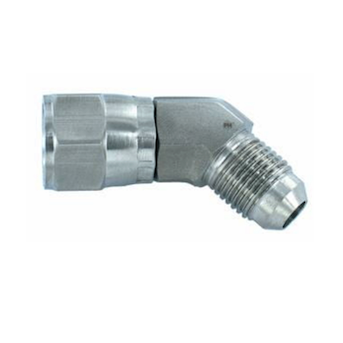

Hné 45° M/F JIC
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: HANSA-FLEX
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| GS14200404 | Hné M/F 45° 7/16" | ||
| GS14200505 | Hné M/F 45° 1/2" | ||
| GS14200606 | Hné M/F 45° 9/16" | ||
| GS14200808 | Hné M/F 45° 3/4" | ||
| GS14201010 | Hné M/F 45° 7/8" | ||
| GS14201212 | Hné M/F 45° 1-1/16" | ||
| GS14201616 | Hné M/F 45° 1-5/16" | ||
| GS14202020 | Hné M/F 45° 1-5/8" | ||
| GS14202424 | Hné M/F 45° 1-7/8" |

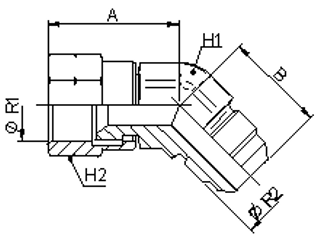

| Vöruheiti | Lengd A (mm) | Lengd B (mm) | Lykilmál H1 | Lykilmál H2 | Gengjur JIC R1 | Vörunúmer |
|---|---|---|---|---|---|---|
| Hné M/F 45° 7/16″ | 23.9 | 18.3 | 11 | 16 | 7/16 | GS14200404 |
| Hné M/F 45° 1/2″ | 25.4 | 19.6 | 13 | 16 | 1/2 | GS14200505 |
| Hné M/F 45° 9/16″ | 28.4 | 21.1 | 14 | 19 | 9/16 | GS14200606 |
| Hné M/F 45° 3/4″ | 32.5 | 24.9 | 19 | 22 | 3/4 | GS14200808 |
| Hné M/F 45° 7/8″ | 36.6 | 28.2 | 22 | 27 | 7/8 | GS14201010 |
| Hné M/F 45° 1-1/16″ | 38.1 | 32.5 | 27 | 32 | 1 1/16 | GS14201212 |
| Hné M/F 45° 1-5/16″ | 44.4 | 37.3 | 33 | 38 | 1 5/16 | GS14201616 |
| Hné M/F 45° 1-5/8″ | 50.5 | 40.4 | 41 | 50 | 1 5/8 | GS14202020 |
| Hné M/F 45° 1-7/8″ | 57.8 | 45 | 48 | 60 | 1 7/8 | GS14202424 |
