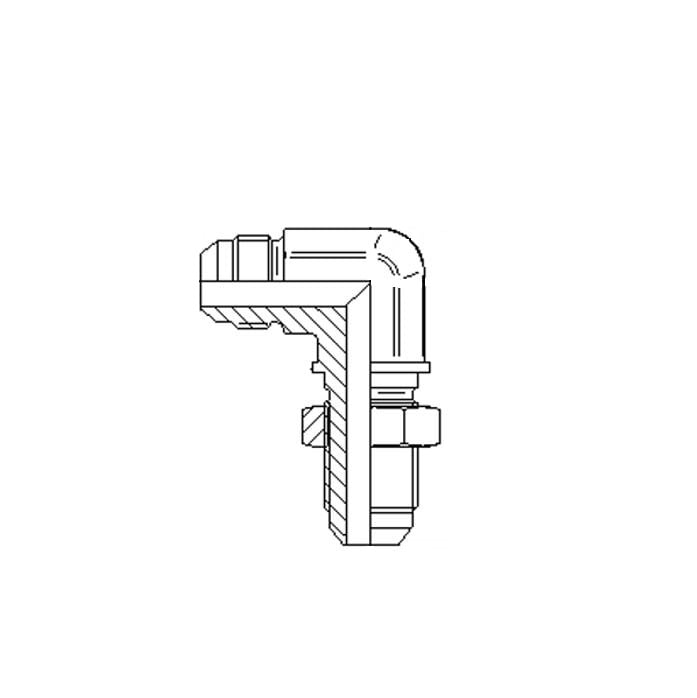

Hné gegnumtak 90° JIC
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: Fontan, HANSA-FLEX
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| GS11200404 | Gegnumtak 90° 7/16" | ||
| GS11200505 | Gegnumtak 90° 1/2" | ||
| GS11200606 | Gegnumtak 90° 9/16" | ||
| GS11200808 | Gegnumtak 90° 3/4" | ||
| GS11201010 | Gegnumtak 90° 7/8" | ||
| GS11201212 | Gegnumtak 90° 1-1/16" | ||
| GS11201616 | Gegnumtak 90° 1-5/16" | ||
| GS11202020 | Gegnumtak 90° 1-5/8" | ||
| GS11202424 | Gegnumtak 90° 1 7/8" |

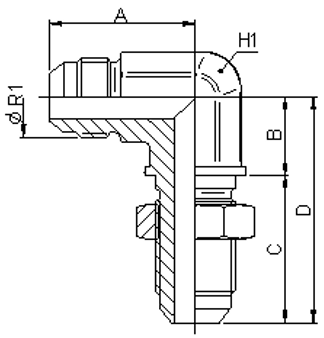

| Vöruheiti | Lengd A mm | Lengd B mm | Lengd C mm | Lengd D mm | Lykilmál H1 | Gengjur JIC R1 | Vörunúmer |
|---|---|---|---|---|---|---|---|
| Gegnumtak 90° 7/16″ | 24.6 | 15.1 | 28.3 | 43.4 | 14 | 7/16 | GS11200404 |
| Gegnumtak 90° 1/2″ | 26.2 | 15.2 | 28.3 | 43.5 | 14 | 1/2 | GS11200505 |
| Gegnumtak 90° 9/16″ | 27.7 | 15.9 | 30.1 | 46 | 14 | 9/16 | GS11200606 |
| Gegnumtak 90° 3/4″ | 34.5 | 18.6 | 35 | 53.6 | 19 | 3/4 | GS11200808 |
| Gegnumtak 90° 7/8″ | 39.6 | 22.2 | 38.5 | 60.7 | 22 | 7/8 | GS11201010 |
| Gegnumtak 90° 1-1/16″ | 45.2 | 25 | 42.8 | 67.8 | 27 | 1 1/16 | GS11201212 |
| Gegnumtak 90° 1-5/16″ | 49.3 | 28.3 | 42.8 | 71.1 | 33 | 1 5/16 | GS11201616 |
| Gegnumtak 90° 1-5/8″ | 55.1 | 35.1 | 44.1 | 79.2 | 41 | 1 5/8 | GS11202020 |
