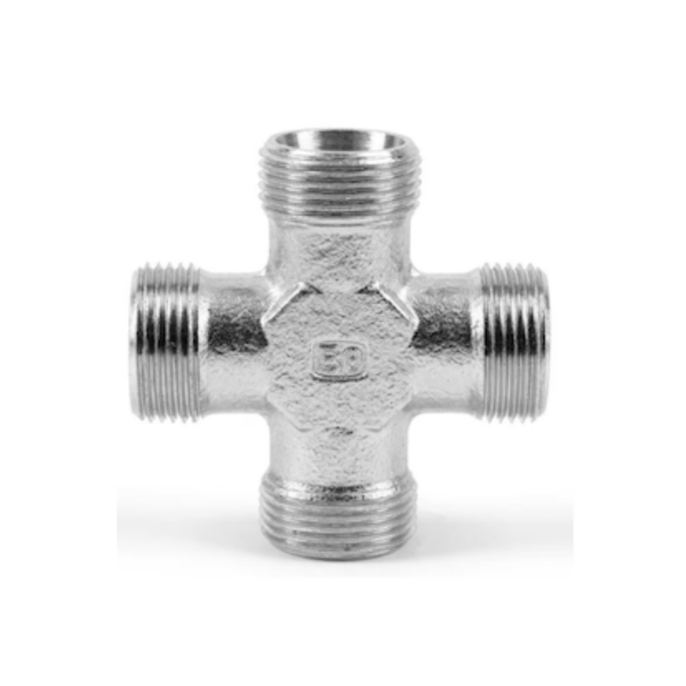

Samtengi K - galvaníseruð.png

Samtengi K - galvaníseruð

Galvaniseraður skerkónafittings fyrir háþrýstar vökvalagnir

Flokkar: Fittings, Lagnaefni, Skerkóna fittings, Stálfittings Brand: Parker

Available Options

Vörunúmer	Vöruheiti	Verð	Magn
14136051	K 8L
14136101	K 10L
14136151	K 12L
14136201	K 15L
14136251	K 18L
14136301	K 22L
14136351	K 28L
14136401	K 35L
14136451	K 42L
14136751	K 16S
14136801	K 20S
14136851	K 25S
14136901	K 30S
14136951	K 38S
14135051	K 4LL
14135101	K 6LL
14135151	K 8LL
14136001	K 6L
14136501	K 6S
14136551	K 8S
14136601	K 10S
14136651	K 12S
14136701	K 14S

Lýsing

Breyta

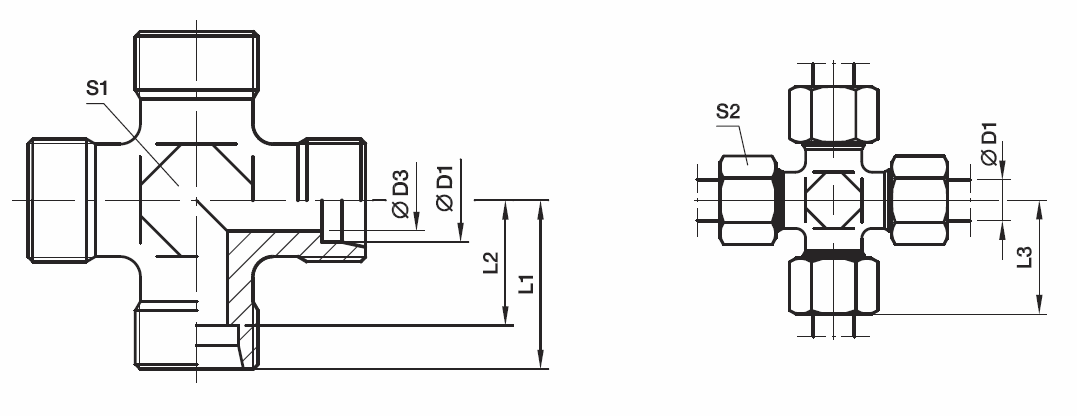

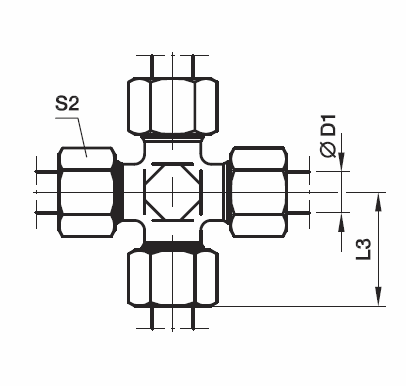

Vöruheiti	Röramál D1 mm	Gegnum borun D3 mm	Hæð L1 mm	Hæð L2 mm	Hæð L3 mm	Lykilmál S1	Lykilmál S2	Þrýstiþol BAR	Vörunúmer
Gerð – LL
K 4LL	4	3	15	11	21	9	10	100	14135051
K 6LL	6	4.5	15	9.5	21	9	12	100	14135101
K 8LL	8	6	17	11.5	23	12	14	100	14135151
Gerð – L
K 6L	6	4	19	12	27	12	14	315	14136001
K 8L	8	6	21	14	29	12	17	315	14136051
K 10L	10	8	22	15	30	14	19	315	14136101
K 12L	12	10	24	17	32	17	22	315	14136151
K 15L	15	12	28	21	36	19	27	315	14136201
K 18L	18	15	31	23.5	40	24	32	315	14136251
K 22L	22	19	35	27.5	44	27	36	160	14136301
K 28L	28	24	38	30.5	47	36	41	160	14136351
K 35L	35	30	45	34.5	56	41	50	160	14136401
K 42L	42	36	51	40	63	50	60	160	14136451
Gerð – S
K 6S	6	4	23	16	31	12	17	630	14136501
K 8S	8	5	24	17	32	14	19	630	14136551
K 10S	10	7	25	17.5	34	17	22	630	14136601
K 12S	12	8	29	21.5	38	17	24	630	14136651
K 14S	14	10	30	22	40	19	27	400	14136701
K 16S	16	12	33	24.5	43	24	30	400	14136751
K 20S	20	16	37	26.5	48	27	36	315	14136801
K 25S	25	20	42	30	54	36	46	315	14136851
K 30S	30	25	49	35.5	62	41	50	315	14136901
K 38S	38	32	57	41	72	50	60	315	14136951
