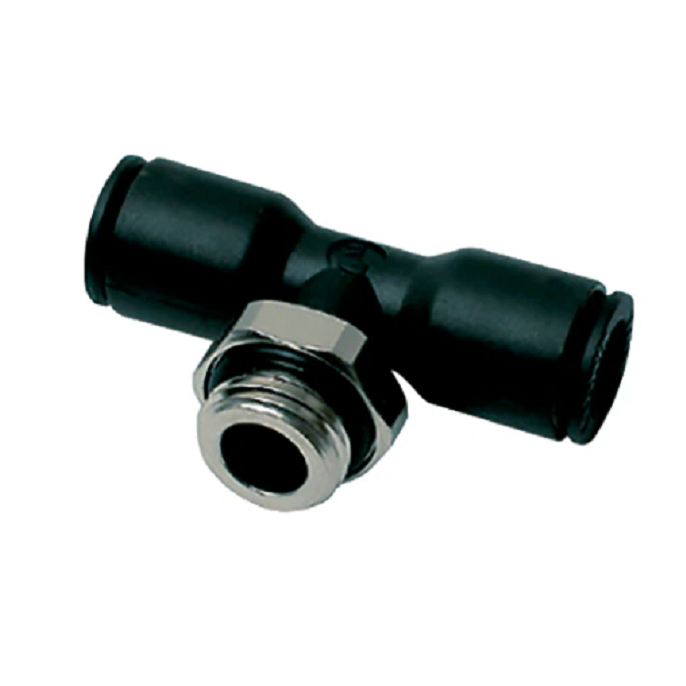

Nippilté með nippli á miðlegg, Legris
Smellutengi fyrir plaströr.
Þrýstiþol 20 Bar.
Hitaþol -20°C til +80°C.
Flokkar: Fittings, Lagnaefni, Legris smellu fittings, Plastfittings
Brand: Parker Legris
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 31980410 | Nippilté 4mmx1/8" | ||
| 31980419 | Nippilté 4mmxM5 | ||
| 31980610 | Nippilté 6mmx1/8" | ||
| 31980613 | Nippilté 6mmx1/4" | ||
| 31980619 | Nippilté 6mmxM5 | ||
| 31980810 | Nippilté 8mmx1/8" | ||
| 31980813 | Nippilté 8mmx1/4" | ||
| 31981013 | Nippilté 10mmx1/4" | ||
| 31981017 | Nippilté 10mmx3/8" | ||
| 31981213 | Nippilté 12mmx1/4" | ||
| 31981217 | Nippilté 12mmx3/8" | ||
| 31981221 | Nippilté 12mmx1/2" | ||
| 31981417 | Nippilté 14mmx3/8" | ||
| 31981421 | Nippilté 14mmx1/2" | ||
| 31980510 | Nippilté 5mmx1/8" |

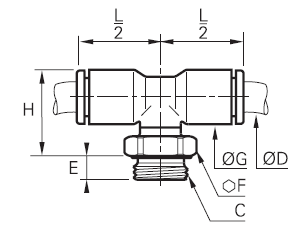

| Vöruheiti | Rörastærð D mm | Gengjur C BSP/M | Hæð E mm | Lykilmál F | Utanmál G mm | Hæð H mm | Lengd L/2 mm | Vörunúmer |
|---|---|---|---|---|---|---|---|---|
| Nippilté 4mmxM5 | 4 | 5 | 3.5 | 8 | 8.5 | 17.5 | 14 | 31980419 |
| Nippilté 4mmx1/8" | 4 | 1/8 | 5 | 13 | 8.5 | 15 | 14 | 31980410 |
| Nippilté 4mmx1/4" | 4 | 1/4 | 5.5 | 16 | 8.5 | 15 | 14 | |
| Nippilté 5mmx1/8" | 5 | 1/8 | 31980510 | |||||
| Nippilté 6mmxM5 | 6 | 5 | 3.5 | 8 | 10.5 | 19.5 | 16 | 31980619 |
| Nippilté 6mmx1/8" | 6 | 1/8 | 5 | 13 | 10.5 | 17 | 16 | 31980610 |
| Nippilté 6mmx1/4" | 6 | 1/4 | 5.5 | 16 | 10.5 | 17 | 16 | 31980613 |
| Nippilté 8mmx1/8" | 8 | 1/8 | 4.5 | 13 | 13.5 | 23.5 | 23 | 31980810 |
| Nippilté 8mmx1/4" | 8 | 1/4 | 5.5 | 16 | 13.5 | 21.5 | 23 | 31980813 |
| Nippilté 8mmx3/8" | 8 | 3/8 | 5.5 | 20 | 13.5 | 21.5 | 23 | |
| Nippilté 10mmx1/4" | 10 | 1/4 | 5.5 | 16 | 16 | 26 | 26.5 | 31981013 |
| Nippilté 10mmx3/8" | 10 | 3/8 | 5.5 | 20 | 16 | 24 | 26.5 | 31981017 |
| Nippilté 10mmx1/2" | 10 | 1/2 | 7.5 | 24 | 16 | 24 | 26.5 | |
| Nippilté 12mmx1/4" | 12 | 1/4 | 5.5 | 16 | 19 | 29 | 31 | 31981213 |
| Nippilté 12mmx3/8" | 12 | 3/8 | 5.5 | 20 | 19 | 27 | 31 | 31981217 |
| Nippilté 12mmx1/2" | 12 | 1/2 | 7 | 24 | 19 | 27 | 31 | 31981221 |
| Nippilté 14mmx3/8" | 14 | 3/8 | 5.5 | 20 | 22 | 32.5 | 35.5 | 31981417 |
| Nippilté 14mmx1/2" | 14 | 1/2 | 7 | 24 | 22 | 27 | 35.5 | 31981421 |
| Nippilté 16mmx3/8" | 16 | 3/8 | 7.5 | 27 | 27 | 54.5 | 38.5 | |
| Nippilté 16mmx1/2" | 16 | 1/2 | 9 | 27 | 27 | 54.5 | 38.5 |
