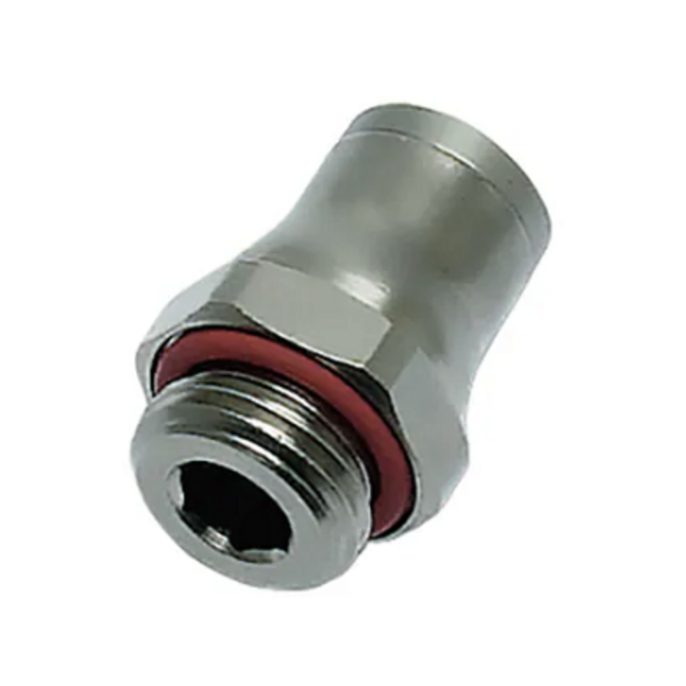

Smellutengi nippiltengi, Legris
Kopar smellutengi frá Parker Legris.
Flokkar: Fittings, Koparfittings, Lagnaefni, Ýmis koparfittings
Brand: Parker Legris
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 36010610 | Tengi 6×1/8″ | ||
| 36010613 | Tengi 6×1/4″ | ||
| 36010810 | Tengi 8×1/8″ | ||
| 36010813 | Tengi 8×1/4″ | ||
| 36011013 | Tengi 10×1/4″ | ||
| 36011017 | Tengi 10×3/8″ | ||
| 36010419 | Tengi 4xM5 | ||
| 36010410 | Tengi 4×1/8″ | ||
| 36010413 | Tengi 4×1/4″ | ||
| 36010619 | Tengi 6xM5 | ||
| 36011221 | Tengi 12×1/2″ |

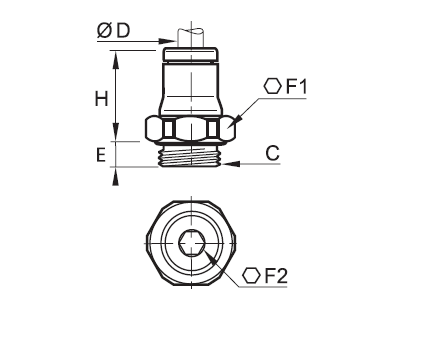

| Vöruheiti | Rörastærð D mm | Gengjur C BSP/M | Hæð E mm | Lykilmál F1 | Sexkant mál F2 | Hæð H mm | Vörunúmer |
|---|---|---|---|---|---|---|---|
| Tengi 4xM5 | 4 | 5 | 3.5 | 10 | 2.5 | 15.5 | 36010419 |
| Tengi 4xM6 | 4 | 6 | 4.5 | 10 | 3 | 16 | |
| Tengi 4xM8 | 4 | 8 | 5 | 11 | 3 | 14.5 | |
| Tengi 4×1/8″ | 4 | 1/8 | 5.5 | 13 | 3 | 14.5 | 36010410 |
| Tengi 4×1/4″ | 4 | 1/4 | 6.5 | 16 | 3 | 14.5 | 36010413 |
| Tengi 6xM5 | 6 | 5 | 3.5 | 13 | 2.5 | 19 | 36010619 |
| Tengi 6xM10 | 6 | 10 | 5.5 | 13 | 4 | 17.5 | |
| Tengi 6×1/8″ | 6 | 1/8 | 5.5 | 13 | 4 | 17.5 | 36010610 |
| Tengi 6×1/4″ | 6 | 1/4 | 6.5 | 16 | 4 | 17 | 36010613 |
| Tengi 8×1/8″ | 8 | 1/8 | 5.5 | 16 | 5 | 21 | 36010810 |
| Tengi 8×1/4″ | 8 | 1/4 | 6.5 | 16 | 6 | 18 | 36010813 |
| Tengi 8×3/8″ | 8 | 3/8 | 7.5 | 20 | 6 | 19 | |
| Tengi 10×1/4″ | 10 | 1/4 | 6.5 | 18 | 7 | 25 | 36011013 |
| Tengi 10×3/8″ | 10 | 3/8 | 7.5 | 20 | 8 | 22.5 | 36011017 |
| Tengi 10 x 1/2″ | 10 | 1/2 | 9 | 24 | 8 | 22.5 | |
| Tengi 12×1/4″ | 12 | 1/4 | 6.5 | 20 | 7 | 26.5 | |
| Tengi 12×3/8″ | 12 | 3/8 | 7.5 | 20 | 9 | 26 | |
| Tengi 12×1/2″ | 12 | 1/2 | 9 | 24 | 10 | 23.5 | 36011221 |
| Tengi 14×3/8″ | 14 | 3/8 | 7.5 | 22 | 9 | 28 | |
| Tengi 14×1/2″ | 14 | 1/2 | 9 | 24 | 11 | 26.5 |
