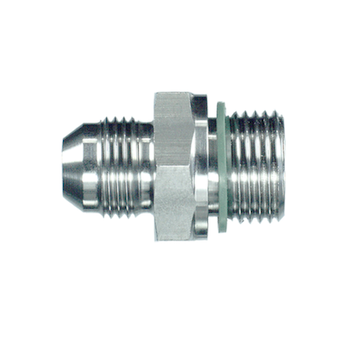

Nipplar, breyti, JIC/mm
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: Fontan, HANSA-FLEX
Available Options

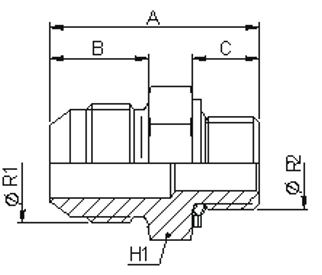

| Vörunúmer | Vöruheiti | Lengd A mm | Lengd B mm | Lengd C mm | Lykilmál H1 | Verð | Magn |
|---|---|---|---|---|---|---|---|
| GS45400410 | Breytinippill 7/16" JICxM10 | 30 | 14 | 8 | 16 | ||
| GS45400412 | Breytinippill 7/16"JICxM12 | 31 | 14 | 8.7 | 19 | ||
| GS45400614 | Breytinippill 9/16"JICxM14 | 31 | 14.1 | 8.7 | 19 | ||
| GS45400616 | Breytinippill 9/16"JICxM16 | 32.6 | 14.1 | 8.7 | 19 | ||
| GS45400816 | Breytinippill 3/4"JICxM16 | 36 | 16.7 | 10 | 22 | ||
| GS45400818 | Breytinippill 3/4"JICxM18 | 38 | 16.7 | 10.7 | 24 | ||
| GS45401022 | Breytinippill 7/8"JICxM22 | 43.5 | 19.3 | 12.7 | 27 | ||
| GS45401227 | Breytinippill 1-1/16" JICxM27 | 49.5 | 21.9 | 15 | 32 | ||
| GS45401627 | Breytinippill 1-5/16" JICxM26 | 50.5 | 23.1 | 17 | 36 | ||
| GS45401018 | Breytinippill 7/8"JICxM18 | 40 | 19.3 | 12.7 | 24 | ||
| GS45401222 | Breytinippill 1-1/16" JICxM22 | 46 | 21.9 | 12.7 | 27 | ||
| GS45401633 | Breytinippill 1-5/16" JICxM33 | 51.5 | 23.1 | 15 | 41 | ||
| GS45402042 | Breytinippill 1-5/8" JICxM42 | 55.5 | 24.3 | 15.5 | 50 | ||
| GS45400618 | Breytinippill 9/16"JIC x M18 | | | | |
