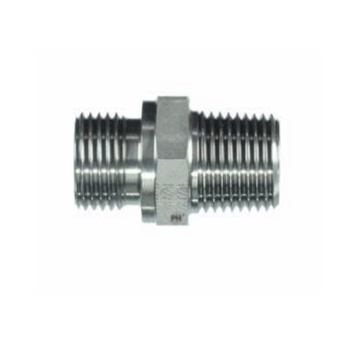

Nipplar BSP/BSPT - ryðfríir
Ryðfrír tommumálsfittings úr AISI 316. Vottað skv. DIN EN ISO 9001:2008.
BSP nippill þéttir á 60° kón eða á brjósti, BSPT nippill þéttir á gengjum.
Flokkar: BSP/BSPT fittings, Fittings, Lagnaefni, Ryðfrír fittings
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 81400104 | Nippill 1/4" BSPx3/8"BSPT | ||
| 81400106 | Nippill 3/8"x1/2"BSPT | ||
| 81400108 | Nippill 1/2" BSPx3/4"BSPT | ||
| 81400112 | Nippill 3/4" BSPx1"BSPT | ||
| 81400116 | Nippill 1" BSPx1 1/4"BSPT | ||
| 81400120 | Nippill 1 1/4" BSPx1 1/2"BSPT | ||
| 81400124 | Nippill 1 1/2" BSPx2"BSPT | ||
| 81400204 | Nippill 1/4" BSPx1/2"BSPT | ||
| 81403004 | Nippill 1/4" BSP/BSPT | ||
| 81403006 | Nippill 3/8" BSP/BSPT | ||
| 81403008 | Nippill 1/2" BSP/BSPT | ||
| 81403012 | Nippill 3/4" BSP/BSPT | ||
| 81403016 | Nippill 1" BSP/BSPT | ||
| 81403020 | Nippill 1 1/4" BSP/BSPT | ||
| 81403024 | Nippill 1 1/2" BSP/BSPT | ||
| 81403032 | Nippill 2" BSP/BSPT | ||
| 81400102 | Nippill 1/4" BSPx1/8"BSPT | ||
| 81403306 | Nippill 3/8" BSPx1/2"BSPT |

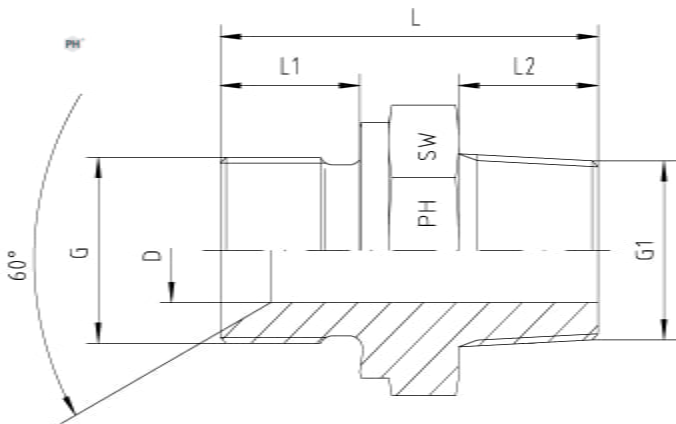

| Vöruheiti | Gengjur G BSP | Gengjur G1 BSPT | Hæð L mm | Hæð L1 mm | Hæð L2 mm | Gegnumborun D mm | Lykilmál SW | Þrýstiþol BAR | Vörunúmer |
|---|---|---|---|---|---|---|---|---|---|
| Nippill 1/8" BSP/BSPT | 1/8 | 1/8 | 23 | 8 | 8 | 4 | 14 | 400 | |
| Nippill 1/4" BSP/BSPT | 1/4 | 1/4 | 30 | 10 | 12 | 6 | 19 | 400 | 81403004 |
| Nippill 3/8" BSP/BSPT | 3/8 | 3/8 | 32.5 | 12 | 12 | 9 | 22 | 400 | 81403006 |
| Nippill 1/2" BSP/BSPT | 1/2 | 1/2 | 37 | 14 | 14 | 12.5 | 27 | 400 | 81403008 |
| Nippill 3/4" BSP/BSPT | 3/4 | 3/4 | 47 | 16 | 19 | 17.5 | 32 | 400 | 81403012 |
| Nippill 1" BSP/BSPT | 1 | 1 | 49 | 18 | 18 | 22 | 41 | 400 | 81403016 |
| Nippill 1 1/4" BSP/BSPT | 1 1/4 | 1 1/4 | 54.5 | 20 | 20 | 29 | 50 | 200 | 81403020 |
| Nippill 1 1/2" BSP/BSPT | 1 1/2 | 1 1/2 | 58.5 | 22 | 22 | 37 | 55 | 200 | 81403024 |
| Nippill 2" BSP/BSPT | 2 | 2 | 66 | 25 | 26 | 45 | 70 | 100 | 81403032 |
| Nippill 1/4" BSPx1/8"BSPT | 1/4 | 1/8 | 26 | 10 | 8 | 4 | 19 | 400 | 81400102 |
| Nippill 1/4" BSPx3/8"BSPT | 1/4 | 3/8 | 32 | 10 | 12 | 7 | 19 | 400 | 81400104 |
| Nippill 1/4" BSPx1/2"BSPT | 1/4 | 1/2 | 34 | 10 | 14 | 6 | 22 | 400 | 81400204 |
| Nippill 3/8" BSPx1/4"BSPT | 3/8 | 1/4 | 33 | 12 | 12 | 7 | 22 | 400 | |
| Nippill 3/8" BSPx1/2"BSPT | 3/8 | 1/2 | 42 | 12 | 19 | 9 | 22 | 400 | 81400106 |
| Nippill 1/2" BSPx3/8"BSPT | 1/2 | 3/8 | 37 | 14 | 12 | 9 | 27 | 400 | |
| Nippill 1/2" BSPx3/4"BSPT | 1/2 | 3/4 | 45 | 14 | 19 | 12.5 | 27 | 400 | 81400108 |
| Nippill 3/4" BSPx1/2"BSPT | 3/4 | 1/2 | 45 | 16 | 19 | 12.5 | 32 | 400 | |
| Nippill 3/4" BSPx1"BSPT | 3/4 | 1 | 45 | 16 | 18 | 17.5 | 36 | 400 | 81400112 |
| Nippill 1" BSPx1 1/4"BSPT | 1 | 1 1/4 | 81400116 | ||||||
| Nippill 1 1/4" BSPx1 1/2"BSPT | 1 1/4 | 1 1/2 | 81400120 | ||||||
| Nippill 1 1/2" BSPx2"BSPT | 1 1/2 | 2 | 81400124 |
