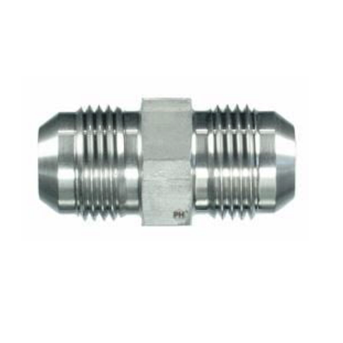

Nipplar JIC/JIC
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: Fontan, HANSA-FLEX
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| GS10100404 | Nippill 7/16" | ||
| GS10100505 | Nippill 1/2" | ||
| GS10100606 | Nippill 9/16" | ||
| GS10100808 | Nippill 3/4" | ||
| GS10101010 | Nippill 7/8" | ||
| GS10101212 | Nippill 1-1/16" | ||
| GS10101616 | Nippill 1-5/16" | ||
| GS10102020 | Nippill 1-5/8" | ||
| GS10102424 | Nippill 1-7/8" | ||
| GS10103232 | Nippill 2-1/2" | ||
| GS10100607 | NIppill 7/16" x 9/16" |

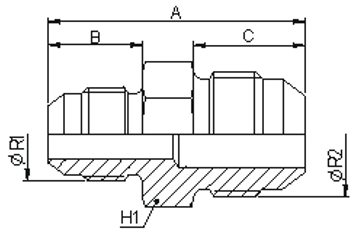

| Vöruheiti | Lengd A mm | Lengd B mm | Lengd C mm | Lykilmál H1 | Gengjur JIC R1 | Gengjur JIC R2 | Vörunúmer |
|---|---|---|---|---|---|---|---|
| Nippill 7/16″ | 34.8 | 14 | 14 | 13 | 7/16 | 7/16 | GS10100404 |
| NIppill 7/16″x1/2″ | 34.8 | 14 | 14 | 14 | 7/16 | 1/2 | |
| NIppill 7/16″x9/16″ | 35.7 | 14 | 14.1 | 16 | 7/16 | 9/16 | GS10100607 |
| Nippill 1/2″ | 34.8 | 14 | 14 | 14 | 1/2 | 1/2 | GS10100505 |
| NIppill 1/2″x9/16″ | 35.7 | 14 | 14.1 | 16 | 1/2 | 9/16 | |
| Nippill 9/16″ | 35.8 | 14.1 | 14.1 | 16 | 9/16 | 9/16 | GS10100606 |
| NIppill 9/16″x3/4″ | 38.5 | 14.1 | 16.7 | 19 | 9/16 | 3/4 | |
| NIppill 9/16″x1-1/16″ | 47 | 14.1 | 21.9 | 27 | 9/16 | 1 1/16 | |
| Nippill 3/4″ | 41.1 | 16.7 | 16.7 | 24 | 3/4 | 3/4 | GS10100808 |
| Nippill 3/4″x7/8″ | 45 | 16.7 | 19.3 | 24 | 3/4 | 7/8 | GS10100810 |
| NIppill 3/4″x1-1/16″ | 49.8 | 16.7 | 21.9 | 27 | 3/4 | 1 1/16 | |
| NIppill 3/4″x1-5/16″ | 51.8 | 16.7 | 23.1 | 36 | 3/4 | 1 5/16 | |
| Nippill 7/8″ | 47.8 | 19.3 | 19.3 | 24 | 7/8 | 7/8 | GS10101010 |
| Nippill 1-1/16″x7/8″ | 52.2 | 19.3 | 21.9 | 27 | 1 1/16 | 7/8 | GS10101012 |
| Nippill 7/8″x1-5/8″ | 56.7 | 19.3 | 24.3 | 46 | 7/8 | 1 5/8 | |
| Nippill 1-1/16″ | 54.9 | 21.9 | 21.9 | 27 | 1 1/16 | 1 1/16 | GS10101212 |
| Nippill 1-5/16″x-1-1/16″ | 56 | 21.9 | 23.1 | 36 | 1 5/16 | 1 1/16 | GS10101619 |
| Nippill 1-5/16″ | 57.2 | 23.1 | 23.1 | 36 | 1 5/16 | 1 5/16 | GS10101616 |
| Nippill 1-5/8×1-5/16″ | 60.5 | 23.1 | 24.3 | 46 | 1 5/8 | 1 5/16 | GS10101620 |
| Nippill 1-5/16×1-7/8″ | 71 | 23.1 | 27.5 | 50 | 1 5/16 | 1 7/8 | |
| Nippill 1-5/8″ | 61.7 | 24.3 | 24.3 | 46 | 1 5/8 | 1 5/8 | GS10102020 |
| Nippill 1-7/8″ | 69.8 | 27.5 | 27.5 | 50 | 1 7/8 | 1 7/8 | GS10102424 |
| Nippill 2-1/2″ | 86.5 | 33.9 | 33.9 | 65 | 2 1/2 | 2 1/2 | GS10103232 |
