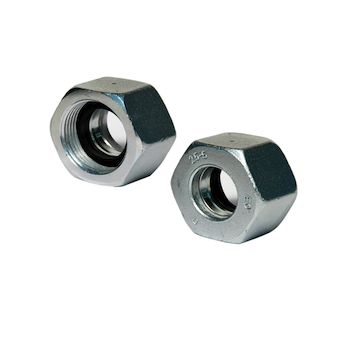

Rær, FM - galvaníseraðar
Galvaniseraður skerkónafittings fyrir háþrýstar vökvalagnir.
Ró og kónn í Parker EO2.
Flokkar: Fittings, Lagnaefni, Skerkóna fittings, Stálfittings
Brand: Parker
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 14008312 | FM 12L | ||
| 14008416 | FM 16S | ||
| 14008420 | FM 20S | ||
| 14008438 | FM 38S | ||
| 14008306 | FM 6L | ||
| 14008308 | FM 8L | ||
| 14008310 | FM 10L | ||
| 14008315 | FM 15L | ||
| 14008318 | FM 18L | ||
| 14008322 | FM 22L | ||
| 14008328 | FM 28L | ||
| 14008335 | FM 35L | ||
| 14008342 | FM 42L | ||
| 14008406 | FM 6S | ||
| 14008408 | FM 8S | ||
| 14008410 | FM 10S | ||
| 14008412 | FM 12S | ||
| 14008414 | FM 14S | ||
| 14008425 | FM 25S | ||
| 14008430 | FM 30S |

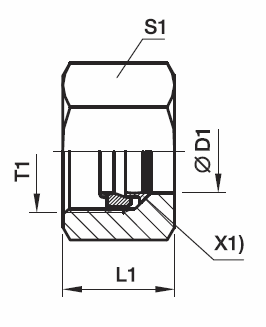

| Vöruheiti | Röramál D1 mm | Gengjur T1 M | Hæð L1 mm | Lykilmál S1 | Þrýstiþol BAR | Vörunúmer |
|---|---|---|---|---|---|---|
| Gerð – LL | ||||||
| FM 4LL | 4 | 8×1,0 | 11 | 10 | 100 | |
| FM 6LL | 6 | 10×1,0 | 11.5 | 12 | ||
| Gerð – L | ||||||
| FM 6L | 6 | 12×1,5 | 14.5 | 14 | 500 | 14008306 |
| FM 8L | 8 | 14×1,5 | 14.5 | 17 | 500 | 14008308 |
| FM 10L | 10 | 16×1,5 | 15.5 | 19 | 500 | 14008310 |
| FM 12L | 12 | 18×1,5 | 15.5 | 22 | 400 | 14008312 |
| FM 15L | 15 | 22×1,5 | 17 | 27 | 400 | 14008315 |
| FM 18L | 18 | 26×1,5 | 18 | 32 | 400 | 14008318 |
| FM 22L | 22 | 30×2,0 | 20 | 36 | 250 | 14008322 |
| FM 28L | 28 | 36×2,0 | 21 | 41 | 250 | 14008328 |
| FM 35L | 35 | 45×2,0 | 24 | 50 | 250 | 14008335 |
| FM 42L | 42 | 52×2,0 | 24 | 60 | 250 | 14008342 |
| Gerð – S | ||||||
| FM 6S | 6 | 14×1,5 | 16.5 | 17 | 800 | 14008406 |
| FM 8S | 8 | 16×1,5 | 16.5 | 19 | 800 | 14008408 |
| FM 10S | 10 | 18×1,8 | 17.5 | 22 | 800 | 14008410 |
| FM 12S | 12 | 20×1,5 | 17.5 | 24 | 630 | 14008412 |
| FM 14S | 14 | 22×1,5 | 20.5 | 27 | 630 | 14008414 |
| FM 16S | 16 | 24×1,5 | 20.5 | 30 | 630 | 14008416 |
| FM 20S | 20 | 30×2,0 | 24 | 36 | 420 | 14008420 |
| FM 25S | 25 | 36×2,0 | 27 | 46 | 420 | 14008425 |
| FM 30S | 30 | 42×2,0 | 29 | 50 | 420 | 14008430 |
| FM 38S | 38 | 52×2,0 | 32.5 | 60 | 420 | 14008438 |
