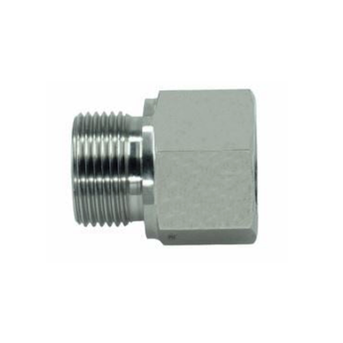

Breytistykki RI - ryðfrí
Ryðfrír fittings úr AISI 316.
Vottað skv. DIN EN ISO 9001:2008.
Breytistykki, minnkanir, í tommumáli gengjur BSPM og BSPF
Flokkar: BSP/BSPT fittings, Fittings, Lagnaefni, Ryðfrír fittings, Skerkóna fittings
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 84149001 | RI 1/8"x3/8" | ||
| 84149011 | RI 1/8"x1/4" | ||
| 84149021 | RI 1/4"x3/4" | ||
| 84149031 | RI 1/4"x1/2" | ||
| 84149041 | RI 1/4"x3/8" | ||
| 84149061 | RI 3/8"x3/4" | ||
| 84149071 | RI 3/8"x1/2" | ||
| 84149081 | RI 3/8"x1/4" | ||
| 84149091 | RI 3/8"x1/8" | ||
| 84149101 | RI 1/2"x1-1/4" | ||
| 84149111 | RI 1/2"x1" | ||
| 84149121 | RI 1/2"x3/4" | ||
| 84149131 | RI 1/2"x3/8" | ||
| 84149141 | RI 1/2"x1/4" | ||
| 84149171 | RI 3/4"x1-1/4" | ||
| 84149181 | RI 3/4"x1" | ||
| 84149191 | RI 3/4"x1/2" | ||
| 84149201 | RI 3/4"x3/8" | ||
| 84149211 | RI 3/4"x1/4" | ||
| 84149231 | RI 1"x1-1/4" | ||
| 84149241 | RI 1"x3/4" | ||
| 84149251 | RI 1"x1/2" | ||
| 84149261 | RI 1"x3/8" | ||
| 84149271 | RI 1"x1/4" | ||
| 84149291 | RI 1-1/4"x1" | ||
| 84149301 | RI 1-1/4"x3/4" | ||
| 84149311 | RI 1-1/4"x1/2" | ||
| 84149331 | RI 1-1/2"x1" | ||
| 84149341 | RI 1-1/2"x3/4" | ||
| 84149351 | RI 1-1/2"x1/2" | ||
| 84149010 | RI 1/8"x1/8" | ||
| 84149151 | RI 1/2"x1/8" | ||
| 84149161 | RI 3/4"x1-1/2" | ||
| 84149185 | RI 3/4"x3/4" | ||
| 84149221 | RI 1"x1-1/2" | ||
| 84149281 | RI 1-1/4"x1-1/2" | ||
| 84149321 | RI 1-1/2"x1-1/4" |

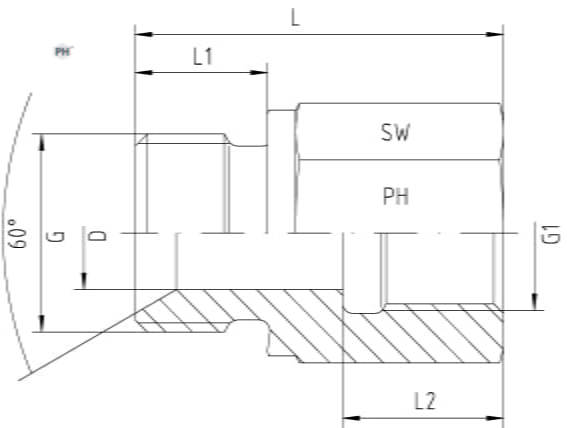

| Vöruheiti | Gengjur G BSP | Gengjur G1 BSP | Hæð L mm | Hæð L1 mm | Hæð L2 mm | Lykilmál SW | Þrýstiþol BAR | Lag | Vörunúmer |
|---|---|---|---|---|---|---|---|---|---|
| RI 1/8"x3/8" | 1/8 | 3/8 | 32 | 8 | 17 | 24 | 630 | B | 84149001 |
| RI 1/8"x1/8" | 1/8 | 1/8 | 23,5 | 8 | 11 | 17 | 630 | B | 84149010 |
| RI 1/8"x1/4" | 1/8 | 1/4 | 31 | 8 | 17 | 19 | 630 | B | 84149011 |
| RI 1/4"x3/4" | 1/4 | 3/4 | 43 | 12 | 22 | 36 | 630 | B | 84149021 |
| RI 1/4"x1/2" | 1/4 | 1/2 | 40 | 12 | 20 | 27 | 630 | B | 84149031 |
| RI 1/4"x3/8" | 1/4 | 3/8 | 36 | 12 | 17 | 24 | 630 | B | 84149041 |
| RI 1/4"x1/8" | 1/4 | 1/8 | 28 | 12 | 12 | 19 | 630 | B | |
| RI 3/8"x1" | 3/8 | 1 | 46.5 | 12 | 24.5 | 41 | 400 | B | |
| RI 3/8"x3/4" | 3/8 | 3/4 | 44 | 12 | 22 | 36 | 400 | B | 84149061 |
| RI 3/8"x1/2" | 3/8 | 1/2 | 41 | 12 | 20 | 27 | 400 | B | 84149071 |
| RI 3/8"x1/4" | 3/8 | 1/4 | 36 | 12 | 17 | 22 | 400 | B | 84149081 |
| RI 3/8"x1/8" | 3/8 | 1/8 | 22.5 | 12 | 8 | 22 | 400 | A | 84149091 |
| RI 1/2"x1-1/4" | 1/2 | 1 1/4 | 53 | 14 | 26.5 | 55 | 250 | B | 84149101 |
| RI 1/2"x1" | 1/2 | 1 | 49 | 14 | 24.5 | 41 | 400 | B | 84149111 |
| RI 1/2"x3/4" | 1/2 | 3/4 | 46 | 14 | 22 | 36 | 400 | B | 84149121 |
| RI 1/2"x3/8" | 1/2 | 3/8 | 36 | 14 | 17 | 27 | 400 | B | 84149131 |
| RI 1/2"x1/4" | 1/2 | 1/4 | 24 | 14 | 12 | 27 | 400 | A | 84149141 |
| RI 1/2"x1/8" | 1/2 | 1/8 | 24 | 14 | 8 | 27 | 400 | A | 84149151 |
| RI 3/4"x1-1/2" | 3/4 | 1 1/2 | 57 | 16 | 28.5 | 60 | 250 | B | 84149161 |
| RI 3/4"x1-1/4" | 3/4 | 1 1/4 | 55 | 16 | 26.5 | 55 | 250 | B | 84149171 |
| RI 3/4"x1" | 3/4 | 1 | 51 | 16 | 24.5 | 41 | 400 | B | 84149181 |
| RI 3/4"x3/4" | 3/4 | 3/4 | 36 | 2 | 32 | 400 | B | 84149185 | |
| RI 3/4"x1/2" | 3/4 | 1/2 | 41 | 16 | 20 | 32 | 400 | B | 84149191 |
| RI 3/4"x3/8" | 3/4 | 3/8 | 26 | 16 | 13 | 32 | 400 | A | 84149201 |
| RI 3/4"x1/4" | 3/4 | 1/4 | 26 | 16 | 12 | 32 | 400 | A | 84149211 |
| RI 3/4"x1/8" | 3/4 | 1/8 | 26 | 16 | 8 | 32 | 400 | A | |
| RI 1"x1-1/2" | 1 | 1 1/2 | 59 | 18 | 28.5 | 60 | 250 | B | 84149221 |
| RI 1"x1-1/4" | 1 | 1 1/4 | 57 | 18 | 26.5 | 55 | 250 | B | 84149231 |
| RI 1"x3/4" | 1 | 3/4 | 47 | 18 | 22 | 41 | 400 | B | 84149241 |
| RI 1"x1/2" | 1 | 1/2 | 29 | 18 | 14 | 41 | 400 | A | 84149251 |
| RI 1"x3/8" | 1 | 3/8 | 29 | 18 | 12 | 41 | 400 | A | 84149261 |
| RI 1"x1/4" | 1 | 1/4 | 29 | 18 | 12 | 41 | 400 | A | 84149271 |
| RI 1-1/4"x1-1/2" | 1 1/4 | 1 1/2 | 60 | 20 | 28.5 | 60 | 250 | B | 84149281 |
| RI 1-1/4"x1" | 1 1/4 | 1 | 52 | 20 | 24.5 | 50 | 250 | B | 84149291 |
| RI 1-1/4"x3/4" | 1 1/4 | 3/4 | 32 | 20 | 16 | 50 | 250 | A | 84149301 |
| RI 1-1/4"x1/2" | 1 1/4 | 1/2 | 32 | 20 | 14 | 50 | 250 | A | 84149311 |
| RI 1-1/4"x3/8" | 1 1/4 | 3/8 | 32 | 20 | 17 | 50 | 250 | A | |
| RI 1-1/2"x1-1/4" | 1 1/2 | 1 1/4 | 58 | 22 | 26.5 | 55 | 250 | B | 84149321 |
| RI 1-1/2"x1" | 1 1/2 | 1 | 36 | 22 | 18 | 55 | 250 | A | 84149331 |
| RI 1-1/2"x3/4" | 1 1/2 | 3/4 | 36 | 22 | 16 | 55 | 250 | A | 84149341 |
| RI 1-1/2"x1/2" | 1 1/2 | 1/2 | 36 | 22 | 14 | 55 | 250 | A | 84149351 |
| RI 2"x1-1/2" | 2 | 1 1/2 | 42 | 22.5 | 18.5 | 70 | 250 | A | |
| RI 2"x1-1/4" | 2 | 1 1/4 | 42 | 22.5 | 18.5 | 70 | 250 | A | |
| RI 2"x1" | 2 | 1 | 42 | 22.5 | 18.5 | 70 | 250 | A | |
| RI 2"x3/4" | 2 | 3/4 | 42 | 22.5 | 16 | 70 | 250 | A | |
| RI 2"x1/2" | 2 | 1/2 | 41.5 | 22.5 | 16 | 70 | 250 | A |
