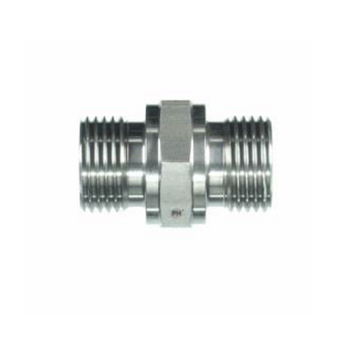

Nipplar BSP M - ryðfríir
Ryðfrír tommumálsfittings úr AISI 316. Vottað skv. DIN EN ISO 9001:2008.
Þéttir á 60° kón eða á brjósti.
Flokkar: BSP/BSPT fittings, Fittings, Lagnaefni, Ryðfrír fittings
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 81400004 | Nippill 1/4" BSP | ||
| 81400006 | Nippill 3/8" BSP | ||
| 81400008 | Nippill 1/2" BSP | ||
| 81400012 | Nippill 3/4" BSP | ||
| 81400016 | Nippill 1" BSP | ||
| 81400020 | Nippill 1 1/4" BSP | ||
| 81400024 | Nippill 1 1/2" BSP | ||
| 81400032 | Nippill 2" BSP | ||
| 81400506 | Nippill langur 3/8" BSP | ||
| 81400508 | Nippill langur 1/2" BSP | ||
| 81400512 | Nippill langur 3/4" BSP | ||
| 81400516 | Nippill langur 1" BSP | ||
| 81400010 | Nippill 5/8" BSP | ||
| 81400504 | Nippill langur 1/4" BSP | ||
| 81400520 | Nippill langur 1 1/4" BSP | ||
| 81400002 | Nippill 1/8" BSP |

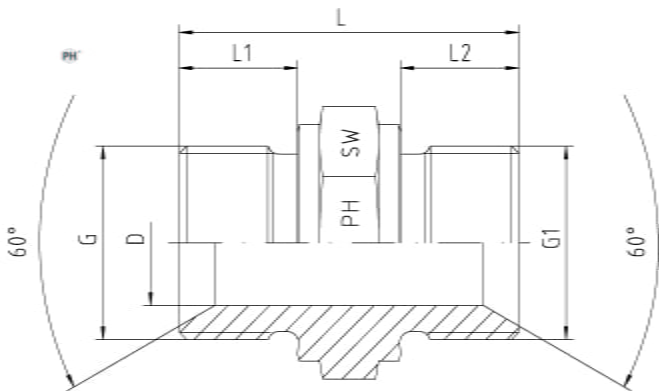

| Vöruheiti | Gengjur G/G1 BSP | Hæð L mm | Hæð L1/L2 mm | Gegnumborun D mm | Lykilmál SW1 | Þrýstiþol BAR | Vörunúmer |
|---|---|---|---|---|---|---|---|
| Nippill 1/8" BSP | 1/8 | 23 | 8 | 4.5 | 14 | 400 | |
| Nippill 1/4" BSP | 1/4 | 29 | 10 | 6 | 19 | 400 | 81400004 |
| Nippill 3/8" BSP | 3/8 | 35 | 12 | 9 | 22 | 400 | 81400006 |
| Nippill 1/2" BSP | 1/2 | 41 | 14 | 13 | 27 | 400 | 81400008 |
| Nippill 5/8" BSP | 5/8 | 43.5 | 16 | 14.5 | 30 | 400 | 81400010 |
| Nippill 3/4" BSP | 3/4 | 46 | 16 | 18 | 32 | 400 | 81400012 |
| Nippill 1" BSP | 1 | 52 | 18 | 23.5 | 41 | 400 | 81400016 |
| Nippill 1 1/4" BSP | 1 1/4 | 58 | 20 | 30 | 50 | 200 | 81400020 |
| Nippill 1 1/2" BSP | 1 1/2 | 61 | 22 | 37 | 55 | 200 | 81400024 |
| Nippill 2" BSP | 2 | 67 | 25 | 45 | 70 | 100 | 81400032 |
| Nippill 2 1/2" BSP | 2 1/2 | 70 | 26 | 51 | 90 | 70 | |
| Nipplar langir | |||||||
| Nippill langur 1/4" BSP | 1/4" | 46 | 11/28 | 6 | 19 | 400 | 81400504 |
| Nippill langur 3/8" BSP | 3/8" | 52 | 12/32 | 8 | 22 | 400 | 81400506 |
| Nippill langur 1/2" BSP | 1/2" | 59 | 14/35 | 11 | 27 | 400 | 81400508 |
| Nippill langur 3/4" BSP | 3/4" | 66 | 16/38 | 16,5 | 30 | 400 | 81400512 |
| Nippill langur 1" BSP | 1" | 72 | 19/41 | 22,5 | 41 | 400 | 81400516 |
| Nippill langur 1 1/4" BSP | 1 1/4" | 78 | 20/44 | 30,5 | 50 | 200 | 81400520 |
