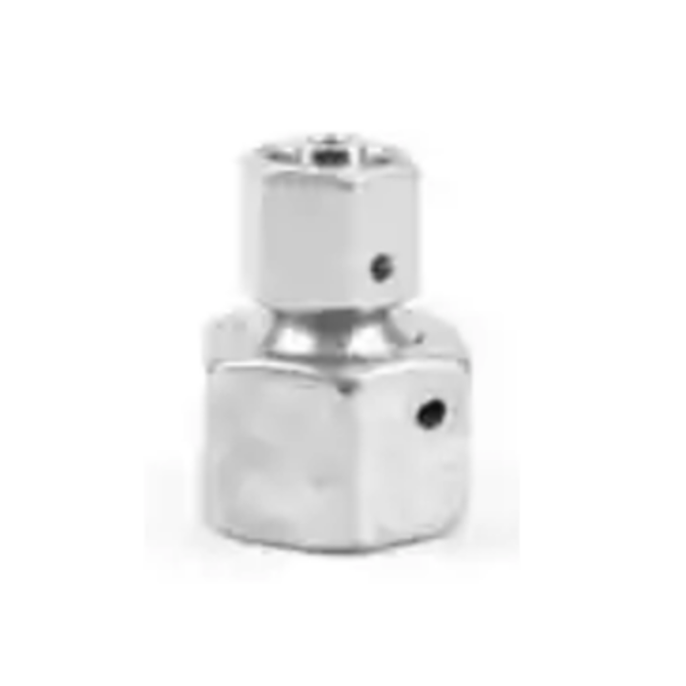

Samtengi SNV - galvaníseruð
Galvaniseraður skerkónafittings fyrir háþrýstar vökvalagnir
Flokkar: Fittings, Lagnaefni, Skerkóna fittings, Stálfittings
Brand: Parker
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 14300606 | SNV 6/6L | ||
| 14300806 | SNV 8/6L | ||
| 14300808 | SNV 8/8L | ||
| 14301006 | SNV 10/6L | ||
| 14301008 | SNV 10/8L | ||
| 14301010 | SNV 10/10L | ||
| 14301206 | SNV 12/6L | ||
| 14301208 | SNV 12/8L | ||
| 14301210 | SNV 12/10L | ||
| 14301212 | SNV 12/12L | ||
| 14301508 | SNV 15/8L | ||
| 14301510 | SNV 15/10L | ||
| 14301512 | SNV 15/12L | ||
| 14301515 | SNV 15/15L | ||
| 14301810 | SNV 18/10L | ||
| 14301812 | SNV 18/12L | ||
| 14301815 | SNV 18/15L | ||
| 14301818 | SNV 18/18L | ||
| 14302212 | SNV 22/12L | ||
| 14302215 | SNV 22/15L | ||
| 14302218 | SNV 22/18L | ||
| 14302222 | SNV 22/22L | ||
| 14302815 | SNV 28/15L | ||
| 14302818 | SNV 28/18L | ||
| 14302822 | SNV 28/22L | ||
| 14302828 | SNV 28/28L | ||
| 14303518 | SNV 35/18L | ||
| 14303522 | SNV 35/22L | ||
| 14303528 | SNV 35/28L | ||
| 14303535 | SNV 35/35L | ||
| 14304222 | SNV 42/22L | ||
| 14304228 | SNV 42/28L | ||
| 14304235 | SNV 42/35L | ||
| 14304242 | SNV 42/42L | ||
| 14310606 | SNV 6L/6S | ||
| 14310808 | SNV 8L/8S | ||
| 14311010 | SNV 10L/10S | ||
| 14311212 | SNV 12L/12S | ||
| 14311516 | SNV 15L/16S | ||
| 14311816 | SNV 18L/16S | ||
| 14312220 | SNV 22L/20S | ||
| 14312225 | SNV 25S/22L | ||
| 14312825 | SNV 28L/25S | ||
| 14313530 | SNV 35L/30S | ||
| 14314238 | SNV 42L/38S | ||
| 14320606 | SNV 6/6S | ||
| 14320806 | SNV 8/6S | ||
| 14320808 | SNV 8/8S | ||
| 14321006 | SNV 10/6S | ||
| 14321008 | SNV 10/8S | ||
| 14321010 | SNV 10/10S | ||
| 14321206 | SNV 12/6S | ||
| 14321208 | SNV 12/8S | ||
| 14321210 | SNV 12/10S | ||
| 14321212 | SNV 12/12S | ||
| 14321610 | SNV 16/10S | ||
| 14321612 | SNV 16/12S | ||
| 14321616 | SNV 16/16S | ||
| 14322012 | SNV 20/12S | ||
| 14322016 | SNV 20/16S | ||
| 14322020 | SNV 20/20S | ||
| 14322516 | SNV 25/16S | ||
| 14322520 | SNV 25/20S | ||
| 14322525 | SNV 25/25S | ||
| 14323016 | SNV 30/16S | ||
| 14323020 | SNV 30/20S | ||
| 14323025 | SNV 30/25S | ||
| 14323030 | SNV 30/30S | ||
| 14323820 | SNV 38/20S | ||
| 14323825 | SNV 38/25S | ||
| 14323830 | SNV 38/30S | ||
| 14323838 | SNV 38/38S | ||
| 14313538 | SNV 35L/38S |

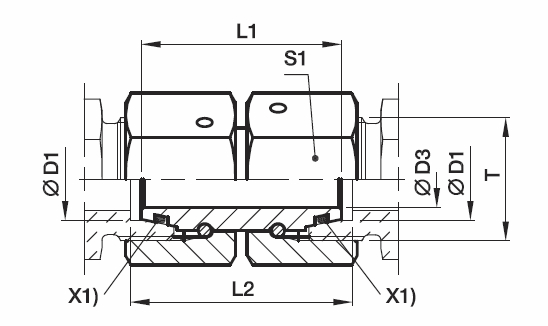

| Vöruheiti | Röra mál D1 mm | Röra mál D2 mm | Gengjur T1 M | Gengjur T2 M | Gegnum borun D3 mm | Hæð L1 mm | Hæð L2 mm | Lykil mál S1 | Lykil mál S2 | Þrýsti þol BAR | Vörunúmer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gerð – L | |||||||||||
| SNV 6/6L | 6 | 6 | 12×1.5 | 12×1.5 | 2.5 | 32 | 33 | 14 | 14 | 500 | 14300606 |
| SNV 8/6L | 8 | 6 | 14×1.5 | 12×1.5 | 2.5 | 32 | 33 | 17 | 14 | 500 | 14300806 |
| SNV 8/8L | 8 | 8 | 14×1.5 | 14×1.5 | 4 | 32 | 33 | 17 | 17 | 500 | 14300808 |
| SNV 10/6L | 10 | 6 | 16×1.5 | 12×1.5 | 2.5 | 33 | 34 | 19 | 14 | 500 | 14301006 |
| SNV 10/8L | 10 | 8 | 16×1.5 | 14×1.5 | 4 | 33 | 34 | 19 | 17 | 500 | 14301008 |
| SNV 10/10L | 10 | 10 | 16×1.5 | 16×1.5 | 6 | 33 | 34 | 19 | 19 | 500 | 14301010 |
| SNV 12/6L | 12 | 6 | 18×1.5 | 12×1.5 | 2.5 | 33 | 34 | 22 | 14 | 400 | 14301206 |
| SNV 12/8L | 12 | 8 | 18×1.5 | 14×1.5 | 4 | 33 | 34 | 22 | 17 | 400 | 14301208 |
| SNV 12/10L | 12 | 10 | 18×1.5 | 16×1.5 | 6 | 33 | 34 | 22 | 19 | 400 | 14301210 |
| SNV 12/12L | 12 | 12 | 18×1.5 | 18×1.5 | 8 | 33 | 34 | 22 | 22 | 400 | 14301212 |
| SNV 15/8L | 15 | 8 | 22×1.5 | 14×1.5 | 4 | 38 | 39 | 27 | 17 | 400 | 14301508 |
| SNV 15/10L | 15 | 10 | 22×1.5 | 16×1.5 | 6 | 38 | 39 | 27 | 19 | 400 | 14301510 |
| SNV 15/12L | 15 | 12 | 22×1.5 | 18×1.5 | 8 | 38 | 39 | 27 | 22 | 400 | 14301512 |
| SNV 15/15L | 15 | 15 | 22×1.5 | 22×1.5 | 10 | 38 | 39 | 27 | 27 | 400 | 14301515 |
| SNV 18/10L | 18 | 10 | 26×1.5 | 16×1.5 | 6 | 36 | 37.5 | 32 | 19 | 400 | 14301810 |
| SNV 18/12L | 18 | 12 | 26×1.5 | 18×1.5 | 8 | 36 | 37.5 | 32 | 22 | 400 | 14301812 |
| SNV 18/15L | 18 | 15 | 26×1.5 | 22×1.5 | 10 | 38 | 39.5 | 32 | 27 | 400 | 14301815 |
| SNV 18/18L | 18 | 18 | 26×1.5 | 26×1.5 | 13 | 36 | 38 | 32 | 32 | 400 | 14301818 |
| SNV 22/12L | 22 | 12 | 30×2.0 | 18×1.5 | 8 | 42 | 43.5 | 36 | 22 | 250 | 14302212 |
| SNV 22/15L | 22 | 15 | 30×2.0 | 22×1.5 | 10 | 42 | 43.5 | 36 | 27 | 250 | 14302215 |
| SNV 22/18L | 22 | 18 | 30×2.0 | 26×1.5 | 13 | 42 | 44 | 36 | 32 | 250 | 14302218 |
| SNV 22/22L | 22 | 22 | 30×2.0 | 30×2.0 | 17 | 42 | 44 | 36 | 36 | 250 | 14302222 |
| SNV 28/15L | 28 | 15 | 36×2.0 | 22×1.5 | 10 | 46 | 47.5 | 41 | 27 | 250 | 14302815 |
| SNV 28/18L | 28 | 18 | 36×2.0 | 26×1.5 | 13 | 46 | 48 | 41 | 32 | 250 | 14302818 |
| SNV 28/22L | 28 | 22 | 36×2.0 | 30×2.0 | 17 | 46 | 46 | 41 | 36 | 250 | 14302822 |
| SNV 28/28L | 28 | 28 | 36×2.0 | 36×2.0 | 22 | 46 | 48 | 41 | 41 | 250 | 14302828 |
| SNV 35/18L | 35 | 18 | 45×2.0 | 26×1.5 | 13 | 48 | 51 | 50 | 32 | 250 | 14303518 |
| SNV 35/22L | 35 | 22 | 45×2.0 | 30×2.0 | 17 | 48 | 51 | 50 | 36 | 250 | 14303522 |
| SNV 35/28L | 35 | 28 | 45×2.0 | 36×2.0 | 22 | 48 | 51 | 50 | 41 | 250 | 14303528 |
| SNV 35/35L | 35 | 35 | 45×2.0 | 45×2.0 | 28 | 48 | 52 | 50 | 50 | 250 | 14303535 |
| SNV 42/22L | 42 | 22 | 52×2.0 | 30×2.0 | 17 | 52 | 55.5 | 60 | 36 | 250 | 14304222 |
| SNV 42/28L | 42 | 28 | 52×2.0 | 36×2.0 | 22 | 52 | 55.5 | 60 | 41 | 250 | 14304228 |
| SNV 42/35L | 42 | 35 | 52×2.0 | 45×2.0 | 28 | 52 | 56.5 | 60 | 50 | 250 | 14304235 |
| SNV 42/42L | 42 | 42 | 52×2.0 | 52×2.0 | 34 | 52 | 57 | 60 | 60 | 250 | 14304242 |
| Gerð -L/S | |||||||||||
| SNV 6L/6S | 6 | 6 | 14×1.5 | 12×1.5 | 2.5 | 32 | 33 | 17 | 14 | 500 | 14310606 |
| SNV 8L/8S | 8 | 8 | 16×1.5 | 14×1.5 | 4 | 33 | 34 | 19 | 17 | 500 | 14310808 |
| SNV 10L/10S | 10 | 10 | 18×1.5 | 16×1.5 | 6 | 33 | 34.5 | 22 | 19 | 500 | 14311010 |
| SNV 12L/12S | 12 | 12 | 20×1.5 | 18×1.5 | 8 | 36 | 37.5 | 24 | 22 | 400 | 14311212 |
| SNV 18L/16S | 18 | 16 | 26×1.5 | 24×1.5 | 11 | 39 | 41.5 | 32 | 30 | 400 | 14311816 |
| SNV 22L/20S | 22 | 20 | 30×2.0 | 30×2.0 | 14 | 44 | 47 | 36 | 36 | 250 | 14312220 |
| SNV 28L/25S | 28 | 25 | 36×2.0 | 36×2.0 | 18 | 46 | 50.5 | 41 | 46 | 250 | 14312825 |
| SNV 35L/30S | 35 | 30 | 45×2.0 | 42×2.0 | 23 | 52 | 59 | 50 | 50 | 250 | 14313530 |
| SNV 42L/38S | 42 | 38 | 52×2.0 | 52×2.0 | 30 | 52 | 62 | 60 | 60 | 250 | 14314238 |
| SNV 15L/16S | 16 | 15 | 24×1.5 | 22×1.5 | 10 | 39 | 41 | 30 | 27 | 400 | 14311516 |
| SNV 18L/20S | 20 | 18 | 30×2.0 | 26×1.5 | 13 | 44 | 47 | 36 | 32 | 400 | 14311820 |
| SNV 25S/22L | 25 | 22 | 36×2.0 | 30×2.0 | 17 | 46 | 50.5 | 46 | 36 | 250 | 14312225 |
| SNV 28L/30S | 30 | 28 | 42×2.0 | 36×2.0 | 22 | 52 | 58 | 50 | 41 | 250 | 14312830 |
| SNV 35L/38S | 38 | 35 | 52×2.0 | 45×2.0 | 28 | 52 | 61.5 | 60 | 50 | 250 | 14313538 |
| Gerð – S | |||||||||||
| SNV 6/6S | 6 | 6 | 14×1.5 | 14×1.5 | 2.5 | 32 | 33 | 17 | 17 | 800 | 14320606 |
| SNV 8/6S | 8 | 6 | 16×1.5 | 14×1.5 | 2.5 | 33 | 34 | 19 | 17 | 800 | 14320806 |
| SNV 8/8S | 8 | 8 | 16×1.5 | 16×1.5 | 4 | 33 | 34 | 19 | 19 | 800 | 14320808 |
| SNV 10/6S | 10 | 6 | 18×1.5 | 14×1.5 | 2.5 | 33 | 34.5 | 22 | 17 | 800 | 14321006 |
| SNV 10/8S | 10 | 8 | 18×1.5 | 16×1.5 | 4 | 33 | 34.5 | 22 | 19 | 800 | 14321008 |
| SNV 10/10S | 10 | 10 | 18×1.5 | 18×1.5 | 6 | 33 | 35 | 22 | 22 | 800 | 14321010 |
| SNV 12/6S | 12 | 6 | 20×1.5 | 14×1.5 | 2.5 | 36 | 37.5 | 24 | 17 | 630 | 14321206 |
| SNV 12/8S | 12 | 8 | 20×1.5 | 16×1.5 | 4 | 36 | 37.5 | 24 | 19 | 630 | 14321208 |
| SNV 12/10S | 12 | 10 | 20×1.5 | 18×1.5 | 6 | 36 | 38 | 24 | 22 | 630 | 14321210 |
| SNV 12/12S | 12 | 12 | 20×1.5 | 20×1.5 | 8 | 36 | 38 | 24 | 24 | 630 | 14321212 |
| SNV 14/14S | 14 | 14 | 22X1.5 | 22X1.5 | 9 | 39 | 41 | 27 | 27 | 630 | |
| SNV 16/10S | 16 | 10 | 24×1.5 | 18×1.5 | 6 | 39 | 41.5 | 30 | 22 | 630 | 14321610 |
| SNV 16/12S | 16 | 12 | 24×1.5 | 20×1.5 | 8 | 39 | 41.5 | 30 | 24 | 630 | 14321612 |
| SNV 16/16S | 16 | 16 | 24×1.5 | 24×1.5 | 11 | 39 | 42 | 30 | 30 | 630 | 14321616 |
| SNV 20/12S | 20 | 12 | 30×2.0 | 20×1.5 | 8 | 44 | 47 | 36 | 24 | 420 | 14322012 |
| SNV 20/16S | 20 | 16 | 30×2.0 | 24×1.5 | 11 | 44 | 47.5 | 36 | 30 | 420 | 14322016 |
| SNV 20/20S | 202 | 20 | 30×2.0 | 30×2.0 | 14 | 44 | 48 | 36 | 36 | 420 | 14322020 |
| SNV 25/16S | 25 | 16 | 36×2.0 | 24×1.5 | 11 | 46 | 51 | 46 | 30 | 420 | 14322516 |
| SNV 25/20S | 25 | 20 | 36×2.0 | 30×2.0 | 14 | 46 | 51.5 | 46 | 36 | 420 | 14322520 |
| SNV 25/25S | 25 | 25 | 36×2.0 | 36×2.0 | 18 | 46 | 53 | 46 | 46 | 420 | 14322525 |
| SNV 30/16S | 30 | 16 | 42×2.0 | 24×1.5 | 11 | 52 | 58.5 | 50 | 30 | 420 | 14323016 |
| SNV 30/20S | 30 | 20 | 42×2.0 | 30×2.0 | 14 | 52 | 59 | 50 | 36 | 420 | 14323020 |
| SNV 30/25S | 30 | 25 | 42×2.0 | 36×2.0 | 18 | 52 | 60.5 | 50 | 46 | 420 | 14323025 |
| SNV 30/30S | 30 | 30 | 42×2.0 | 42×2.0 | 23 | 52 | 62 | 50 | 50 | 420 | 14323030 |
| SNV 38/20S | 38 | 20 | 52×2.0 | 30×2.0 | 14 | 52 | 61.5 | 60 | 36 | 420 | 14323820 |
| SNV 38/25S | 38 | 25 | 52×2.0 | 36×2.0 | 18 | 52 | 63 | 60 | 46 | 420 | 14323825 |
| SNV 38/30S | 38 | 30 | 52×2.0 | 42×2.0 | 23 | 52 | 64.5 | 60 | 50 | 420 | 14323830 |
| SNV 38/38S | 38 | 38 | 52×2.0 | 52×2.0 | 30 | 52 | 67 | 60 | 60 | 420 | 14323838 |
