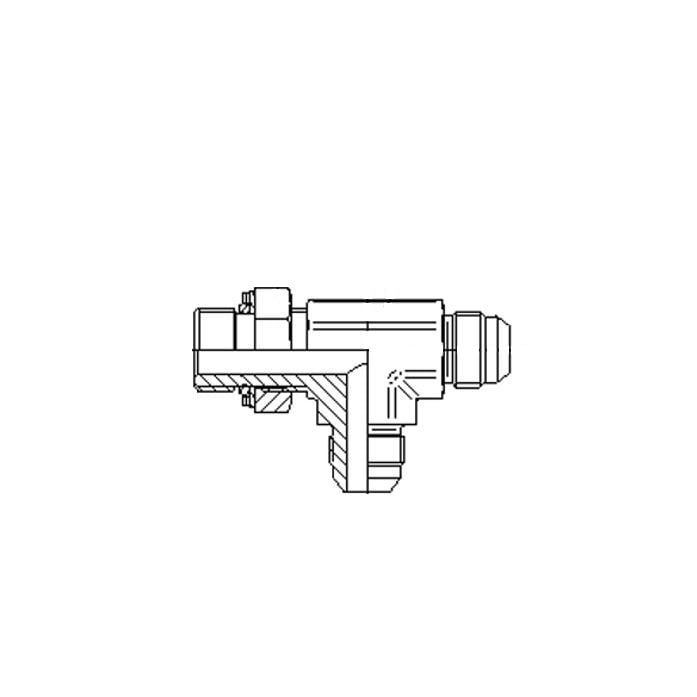

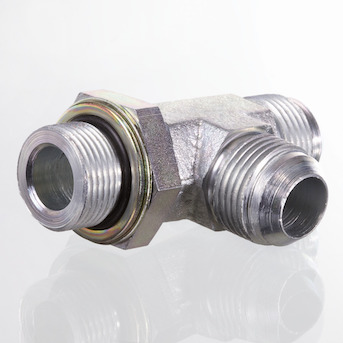

Té, breyti, JIC/JIC/BSP
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: Fontan, HANSA-FLEX
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| GS6810060606 | Breytité 9/16" JICx3/8" BSP | ||
| GS6810080608 | Breytité 3/4" JICx3/8" BSP | ||
| GS6810040204 | Breytité 7/16" JICx1/8" BSP | ||
| GS6810060406 | Breytité 9/16" JICx1/4" BSP | ||
| GS6810080808 | Breytité 3/4" JICx1/2" BSP | ||
| GS6810100810 | Breytité 7/8" JICx1/2" BSP | ||
| GS6810120812 | Breytité 1 1/16" JICx1/2" BSP | ||
| GS6810121212 | Breytité 1 1/16" JICx3/4" BSP | ||
| GS6810161616 | Breytité 1 5/16" JICx1" BSP | ||
| GS6810202020 | Breytité 1 5/8" JICx1 1/4" BSP | ||
| GS6810242424 | Breytité 1 7/8" JICx1 1/2" BSP |

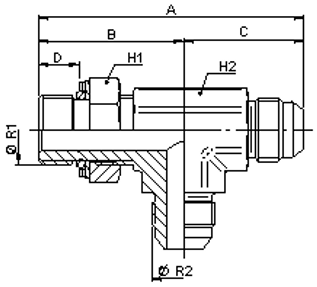

| Vöruheiti | Lengd A mm | Lengd B mm | Lengd C mm | Lengd D mm | Lykilmál H1 | Lykilmál H2 | Gengjur BSP R1 | Gengjur JIC R2 | Vörunúmer |
|---|---|---|---|---|---|---|---|---|---|
| Breytité 7/16″JICx1/8″BSP | 49 | 26.5 | 22.5 | 6.3 | 14 | 11 | 1/8 | 7/16 | GS6810040204 |
| Breytité 7/16″JICx1/4″BSP | 58.5 | 32 | 26.5 | 9.5 | 19 | 14 | 1/4 | 7/16 | GS6810040604 |
| Breytité 1/2″JICx1/8″BSP | 50.5 | 26.5 | 24 | 6.3 | 14 | 13 | 1/8 | 1/2 | |
| Breytité 9/16″JICx1/4″BSP | 59 | 32 | 27 | 9.5 | 19 | 14 | 1/4 | 9/16 | GS6810060406 |
| Breytité 9/16″JICx3/8″BSP | 67.5 | 37 | 30.5 | 9.5 | 22 | 19 | 3/8 | 9/16 | GS6810060606 |
| Breytité 3/4″JICx3/8″BSP | 69 | 37 | 32 | 9.5 | 22 | 19 | 3/8 | 3/4 | GS6810080608 |
| Breytité 3/4″JICx1/2″BSP | 78.7 | 43 | 35.7 | 13 | 27 | 22 | 1/2 | 3/4 | GS6810080808 |
| Breytité 7/8″JICx1/2″BSP | 80 | 43 | 37 | 13 | 27 | 22 | 1/2 | 7/8 | GS6810100810 |
| Breytité 7/8″JICx3/4″BSP | 91 | 49.5 | 41.5 | 13 | 36 | 27 | 3/4 | 7/8 | |
| Breytité 1-1/16″JICx1/2″BSP | 89.5 | 47.5 | 42 | 13 | 27 | 27 | 1/2 | 1 1/16 | GS6810120812 |
| Breytité 1-1/16″JICx3/4″BSP | 91.5 | 49.5 | 42 | 13 | 36 | 27 | 3/4 | 1 1/16 | GS6810121212 |
| Breytité 1-5/16″JICx1″BSP | 98 | 52 | 46 | 16 | 41 | 33 | 1 | 1 5/16 | GS6810161616 |
| Breytité 1-5/8″JICx1-1/4″BSP | 111.5 | 59 | 52.5 | 16 | 50 | 41 | 1 1/4 | 1 5/8 | GS6810202020 |
| Breytité 1-7/8″JICx1-1/2″BSP | 119.5 | 60.5 | 59 | 16 | 55 | 48 | 1 1/2 | 1 7/8 | GS6810242424 |
