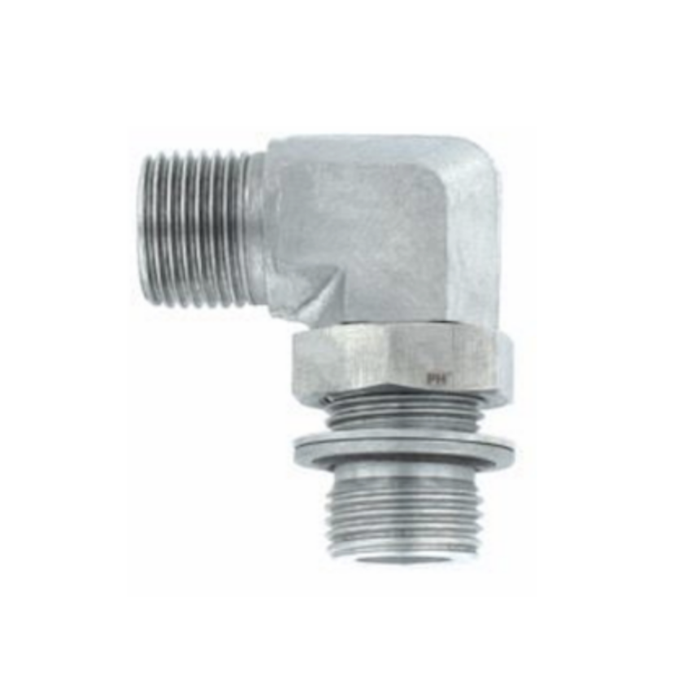

Breytihné 90° ORFS/BSP
Galvaniseraður háþrýstifittings.
Sléttur nippilendi með O-hring (ORFS)
Flokkar: Fittings, Lagnaefni, ORFS fittings, Stálfittings
Brand: Fontan, HANSA-FLEX
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 10830602 | Breytihné 9/16″-1/8″BSP | ||
| 10830604 | Breytihné 9/16″-1/4″BSP | ||
| 10830606 | Breytihné 9/16″-3/8″BSP | ||
| 10830804 | Breytihné 11/16″-1/4″BSP | ||
| 10830806 | Breyihné 11/16″-3/8″BSP | ||
| 10831204 | Breytihné 13/16″-1/4″BSP | ||
| 10831206 | Breytihné 13/16″-3/8″BSP | ||
| 10831208 | Breytihné 13/16″-1/2″BSP | ||
| 10831212 | Breytihné 13/16″-3/4″BSP | ||
| 10832512 | Breytihné 1-7/16″-3/4″BSP | ||
| 10832516 | Breytihné 1-7/16″-1″BSP | ||
| 10830808 | Breytihné 11/16″-1/2″BSP | ||
| 10831606 | Breytihné 1″-3/8″BSP | ||
| 10831608 | Breytihné 1″-1/2″BSP | ||
| 10831612 | Breytihné 1″-3/4″BSP | ||
| 10831616 | Breytihné 1″-1″BSP | ||
| 10832008 | Breytihné 1-3/16″-1/2″BSP | ||
| 10832012 | Breytihné 1-3/16″-3/4″BSP | ||
| 10832016 | Breytihné 1-3/16″-1″BSP | ||
| 10832520 | Breytihné 1-7/16″-1-1/4″BSP | ||
| 10833016 | Breytihné 1-11/16″-1″BSP | ||
| 10833020 | Breytihné 1-11/16″-1-1/4″BSP | ||
| 10833024 | Breytihné 1-11/16″-1-1/2″BSP | ||
| 10833824 | Breytihné 2″-1-1/2″BSP |

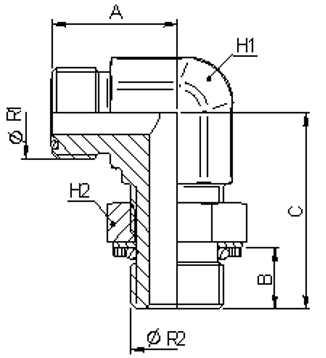

| Vöruheiti | Lengd A (mm) | Lengd B (mm) | Lengd C (mm) | Lykilmál H1 | Lykilmál H2 | O-hringja stærð mm | Gengjur UNF R1 | Gengjur BSP R2 | Vörunúmer |
|---|---|---|---|---|---|---|---|---|---|
| Breytihné 9/16″-1/8″BSP | 21.5 | 6.3 | 30.2 | 14 | 14 | 1,8×7,5 | 9/16 | 1/8 | 10830602 |
| Breytihné 9/16″-1/4″BSP | 21.5 | 9.5 | 32 | 14 | 19 | 1,8×7,5 | 9/16 | 1/4 | 10830604 |
| Breytihné 9/16″-3/8″BSP | 23.5 | 9.5 | 37 | 19 | 22 | 1,8×7,5 | 9/16 | 3/8 | 10830606 |
| Breytihné 11/16″-1/4″BSP | 25 | 9.5 | 37 | 19 | 19 | 1,8×9,25 | 11/16 | 1/4 | 10830804 |
| Breyihné 11/16″-3/8″BSP | 25 | 9 | 37 | 19 | 22 | 1,8×9,25 | 11/16 | 3/8 | 10830806 |
| Breytihné 11/16″-1/2″BSP | 29.2 | 15 | 43 | 22 | 27 | 1,8×9,25 | 11/16 | 1/2 | 10830808 |
| Breytihné 13/16″-1/4″BSP | 28 | 9.5 | 37 | 19 | 19 | 1,8×12,42 | 13/16 | 1/4 | 10831204 |
| Breytihné 13/16″-3/8″BSP | 28 | 9.5 | 37 | 19 | 22 | 1,8×12,42 | 13/16 | 3/8 | 10831206 |
| Breytihné 13/16″-1/2″BSP | 31 | 13 | 43 | 22 | 27 | 1,8×12,42 | 13/16 | 1/2 | 10831208 |
| Breytihné 13/16″-3/4″BSP | 33.5 | 13 | 49.5 | 27 | 36 | 1,8×12,42 | 13/16 | 3/4 | 10831212 |
| Breytihné 1″-3/8″BSP | 33.5 | 9.5 | 43 | 27 | 22 | 1,8×15,6 | 1 | 3/8 | 10831606 |
| Breytihné 1″-1/2″BSP | 33.5 | 13 | 49.5 | 27 | 27 | 1,8×15,6 | 1 | 1/2 | 10831608 |
| Breytihné 1″-3/4″BSP | 36 | 13 | 49.5 | 27 | 36 | 1,8×15,6 | 1 | 3/4 | 10831612 |
| Breytihné 1″-1″BSP | 39.7 | 16 | 52 | 33 | 41 | 1,8×15,6 | 1 | 1 | 10831616 |
| Breytihné 1-3/16″-1/2″BSP | 37.5 | 13 | 49.5 | 30 | 27 | 1,8×18,77 | 1 3/16 | 1/2 | 10832008 |
| Breytihné 1-3/16″-3/4″BSP | 37.5 | 13 | 49.5 | 30 | 36 | 1,8×18,77 | 1 3/16 | 3/4 | 10832012 |
| Breytihné 1-3/16″-1″BSP | 41.2 | 16 | 52 | 33 | 41 | 1,8×18,77 | 1 3/16 | 1 | 10832016 |
| Breytihné 1-7/16″-3/4″BSP | 41.5 | 13 | 55.9 | 36 | 36 | 1,8×21,96 | 1 7/16 | 3/4 | 10832512 |
| Breytihné 1-7/16″-1″BSP | 41.5 | 16 | 58.4 | 36 | 41 | 1,8×21,96 | 1 7/16 | 1 | 10832516 |
| Breytihné 1-7/16″-1-1/4″BSP | 44.5 | 16 | 57 | 41 | 50 | 1,8×21,96 | 1 7/16 | 1 1/4 | 10832520 |
| Breytihné 1-11/16″-1″BSP | 44.5 | 16 | 57 | 41 | 41 | 1,8×29,87 | 1 11/16 | 1 | 10833016 |
| Breytihné 1-11/16″-1-1/4″BSP | 44.5 | 16 | 57 | 41 | 50 | 1,8×29,87 | 1 11/16 | 1 1/4 | 10833020 |
| Breytihné 1-11/16″-1-1/2″BSP | 49 | 16 | 60.5 | 48 | 55 | 1,8×29,87 | 1 11/16 | 1 1/2 | 10833024 |
| Breytihné 2″-1-1/2″BSP | 49 | 16 | 60.5 | 48 | 55 | 1,8×37,82 | 2 | 1 1/2 | 10833824 |
