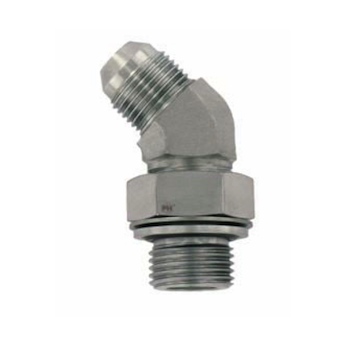

Hné, breyti 45° JIC/UNF

Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).

Available Options

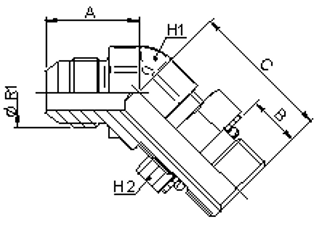

Vörunúmer	Vöruheiti	Lengd A mm	Lengd B mm	Lengd C mm	Lykilmál H1
GS17100606	Breytihné 45° 9/16" JICx9/16" UNF	21.1	10	29	14
GS17100808	Breytihné 45° 3/4" JICx3/4" UNF	24.9	11	33	19
GS17101010	Breytihné 45° 3/4" JICx7/8" UNF	28.2	12.5	38.6	22
GS17101212	Breytihné 45° 1-1/16" JICx1-1/16" UNF	32.5	15	43.9	27
GS17100404	Breytihné 45° 7/16" JICx7/16″UNF	18.3	9	26.7	11
GS17100505	Breytihné 45° 1/2" JICx1/2″UNF	19.6	9	26.7	13
