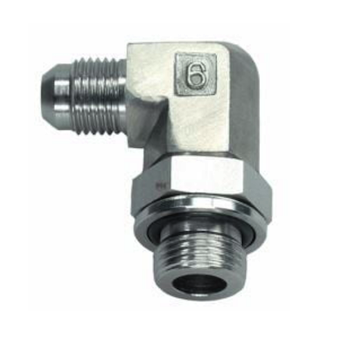

Hné, breyti 90° JIC/mm
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: Fontan, HANSA-FLEX
Available Options

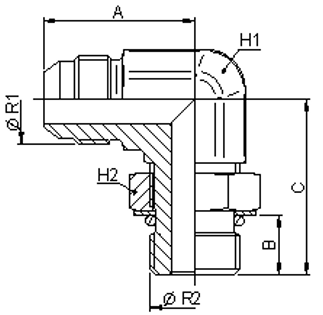

| Vörunúmer | Vöruheiti | Lengd A mm | Lengd B mm | Lengd C mm | Lykilmál H1 | Verð | Magn |
|---|---|---|---|---|---|---|---|
| GS43100410 | Breytihné 7/16" JICxM10 | 22.5 | 9 | 27 | 11 | ||
| GS43100412 | Breytihné 7/16" JICxM12 | 24 | 10 | 30.5 | 13 | ||
| GS43100614 | Breytihné 9/16"JICxM14 | 27 | 10 | 33.5 | 14 | ||
| GS43100617 | Breytihné 9/16"JICxM16 | 31 | 11.5 | 38 | 19 | ||
| GS43100816 | Breytihné 3/4"JICxM16 | 32 | 11.5 | 37.8 | 19 | ||
| GS43100818 | Breytihné 3/4" JICxM18 | 32 | 12 | 38.8 | 19 | ||
| GS43101018 | Breytihné 7/8" JICxM18 | 37 | 12 | 41 | 22 | ||
| GS43101020 | Breytihné 7/8" JICxM20 | 37 | 14 | 42 | 22 | ||
| GS43101022 | Breytihné 7/8" JICxM22 | 37 | 14 | 42 | 27 | ||
| GS43101222 | Breytihné 1-1/16" JICxM22 | 42 | 14 | 47 | 27 | ||
| GS43100512 | Breytihné 1/2″JICxM12 | 24 | 10 | 30.5 | 13 | ||
| GS43101227 | Breytihné 1-1/16" JICxM27 | 42 | 17 | 51 | 27 | ||
| GS43101633 | Breytihné 1-5/16" JICxM33 | 46 | 17 | 53 | 33 | ||
| GS43102042 | Breytihné 1-5/8" JICxM42 | 52.5 | 17.5 | 58 | 41 |
