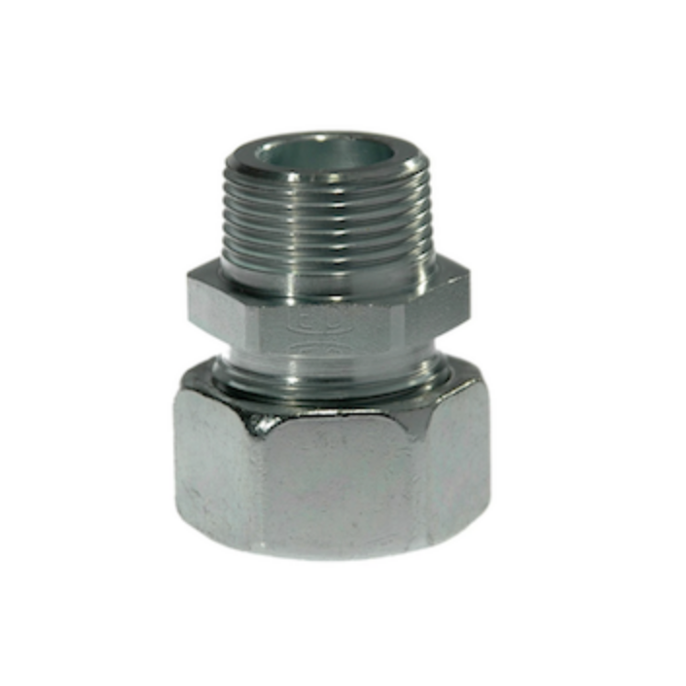

Nippiltengi GE, BSPT - galvaníseruð.png

Nippiltengi GE, BSPT - galvaníseruð

Galvaniseraður skerkónafittings fyrir háþrýstar vökvalagnir

Flokkar: Fittings, Lagnaefni, Skerkóna fittings, Stálfittings Brand: Parker

Available Options

Vörunúmer	Vöruheiti	Verð	Magn
14100402	GE 4LL 1/8"
14100602	GE 6LL 1/8"
14100604	GE 6L 1/4"
14100802	GE 8L 1/8"
14100804	GE 8L 1/4"
14101004	GE 10L 1/4"
14101204	GE 12L 1/4"
14101206	GE 12L 3/8"
14101208	GE 12L 1/2"
14101508	GE 15L 1/2"
14101808	GE 18L 1/2"
14102212	GE 22L 3/4"
14102816	GE 28L 1"
14103520	GE 35LR BSPT
14101812	GE 18LR 3/4"
14101006	GE 10LR 3/8"
14100806	GE 8LR 3/8"

Lýsing

Breyta

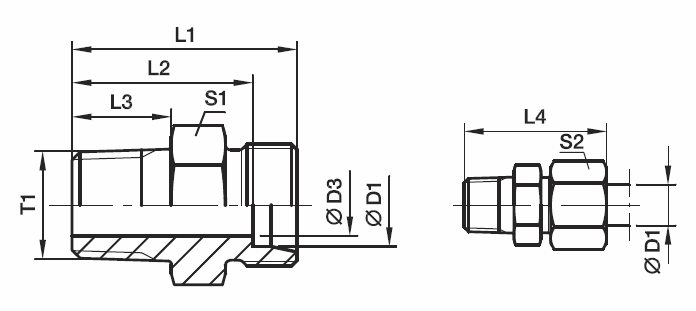

Vöruheiti	Röramál D1 mm	Gengjur T1 BSPT	Gegnum borun D3 mm	Hæð L1 mm	Hæð L2 mm	Hæð L3 mm	Hæð L4 mm	Lykilmál S1	Lykilmál S2	Þrýstiþol BAR	Vörunúmer
Gerð – LL
GE 4LL 1/8″	4	1/8	3	20	16	8	26	11	10	100	14100402
GE 6LL 1/8″	6	1/8	4.5	20	14.5	8	26	11	12	100	14100602
GE 8LL 1/8″	8	1/8	6	22	16.5	8	28	12	14	100
GE 8LL 1/4″	8	1/4	6	26	20.5	12	32	14	14	100
GE 10LL 1/4″	10	1/4	8	26	20.5	12	32	14	17	100
GE 12LL 1/4″	12	1/4	8	26	20	12	32	17	19	100
GE 12LL 3/8″	12	3/8	10	26	20	12	32	17	19	100
Gerð – L
GE 6L 1/8″	6	1/8	4	22	15	8	30	12	14	315
GE 6L 1/4″	6	1/4	4	27	20	12	35	17	14	315	14100604
GE 8L 1/8″	8	1/8	4	23	16	8	31	14	17	315	14100802
GE 8L 1/4″	8	1/4	6	27	20	12	35	17	17	315	14100804
GE 10L 1/4″	10	1/4	7	28	21	12	36	17	19	315	14101004
GE 12L 1/4″	12	1/4	7	29	22	12	37	19	22	315	14101204
GE 12L 3/8″	12	3/8	9	29	22	12	37	19	22	315	14101206
GE 12L 1/2″	12	1/2	10	31	24	14	39	24	22	315	14101208
GE 15L 3/8″	15	3/8	9	30	23	12	38	24	27	315
GE 15L 1/2″	15	1/2	11	32	25	14	40	24	27	315	14101508
GE 18L 1/2″	18	1/2	14	33	25.5	14	42	27	32	315	14101808
GE 22L 3/4″	22	3/4	17	37	29.5	16	46	32	36	160	14102212
GE 28L 1″	28	1	23	40	32.5	18	49	41	41	160	14102816
GE 35L 1-1/4″	35	1 1/4	30	45	34.5	20	56	46	50	160	14103520
GE 42L 1-1/2″	42	1 1/2	36	49	38	22	60	55	60	160
