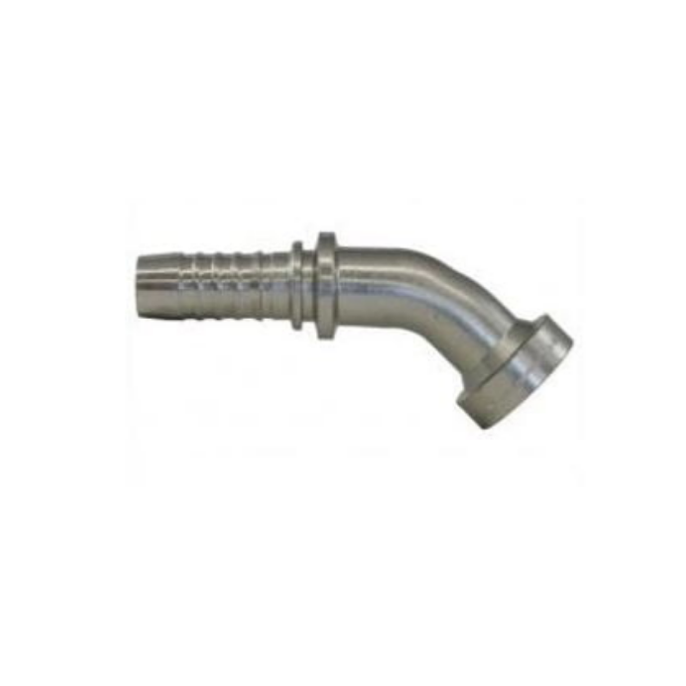

Slöngutengi SAE FL3 45°
SAE – ISO flansar.
SFL 3 = 3000psi.
Með SAE flönsum þarf að nota viðeigandi prófílhring til þéttingar.
Flokkar: Lagnaefni, Slöngutengi, Stáltengi - háþrýst
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 56068008 | 45° tengi 1/2"x1/2" | ||
| 56068012 | 45° tengi 3/4"x3/4" | ||
| 56068016 | 45° tengi 1"x1" | ||
| 56068020 | 45° tengi 1-1/4"x1-1/4" | ||
| 56068024 | 45° tengi 1-1/2"x1-1/2" | ||
| 56068032 | 45° tengi 2"x2" | ||
| 56068108 | 45° tengi 1/2"x3/4" | ||
| 56068112 | 45° tengi 3/4"x1" | ||
| 56068116 | 45° tengi 1"x1-1/4" | ||
| 56068120 | 45° tengi 1-1/4"x1-1/2" | ||
| 56068148 | 45° tengi 3"x3" |
| Vöruheiti | Slöngustærð DN | Slöngustærð „ | Flansastærð „ | Þvermál flans mm | Hæð flans mm | Hæð frá boga mm | Lengd framan hulsu mm | Vörunúmer |
|---|---|---|---|---|---|---|---|---|
| 45° tengi 1/2″x1/2″ | 8 | 1/2 | 1/2 | 30.2 | 6,5 | 22 | 51.5 | 56068008 |
| 45° tengi 1/2″x3/4″ | 8 | 1/2 | 3/4 | 38.1 | 6,7 | 26 | 60 | 56068108 |
| 45° tengi 3/4″x3/4″ | 12 | 3/4 | 3/4 | 38.1 | 6,7 | 32 | 75.5 | 56068012 |
| 45° tengi 3/4″x1″ | 12 | 3/4 | 1 | 44.5 | 8 | 29 | 78 | 56068112 |
| 45° tengi 1″x1″ | 16 | 1 | 1 | 44.5 | 8 | 33.5 | 84.5 | 56068016 |
| 45° tengi 1″x1-1/4″ | 16 | 1 | 1 1/4 | 50.8 | 8 | 36 | 84 | 56068116 |
| 45° tengi 1-1/4″x1-1/4″ | 20 | 1 1/4 | 1 1/4 | 50.8 | 8 | 37.5 | 97.5 | 56068020 |
| 45° tengi 1-1/4″x1-1/2″ | 20 | 1 1/4 | 1 1/2 | 60.3 | 8 | 38 | 106 | 56068120 |
| 45° tengi 1-1/2″x1-1/2″ | 24 | 1 1/2 | 1 1/2 | 60.3 | 8 | 51 | 113.5 | 56068024 |
| 45° tengi 2″x2″ | 32 | 2 | 2 | 71.4 | 9,5 | 47.5 | 139 | 56068032 |
