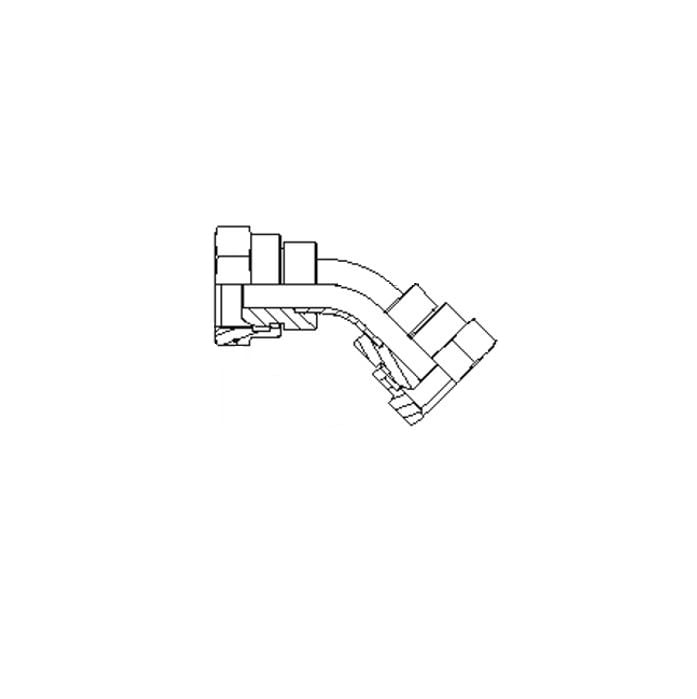

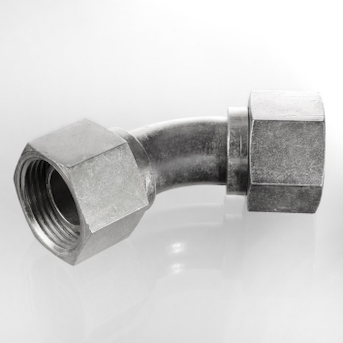

Sveighné 45° BSP F/F
Galvaniseruð fittings BSP.
Flokkar: Fittings, Lagnaefni, Stálfittings, Ýmis stálfittings
Brand: HANSA-FLEX
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 10451204-04 | Sveighné 45° F 1/4″ | ||
| 10451206-06 | Sveighné 45° F 3/8″ | ||
| 10451208-08 | Sveighné 45° F 1/2″ | ||
| 10451212-12 | Sveighné 45° F 3/4″ | ||
| 10451216-16 | Sveighné 45° F 1″ |

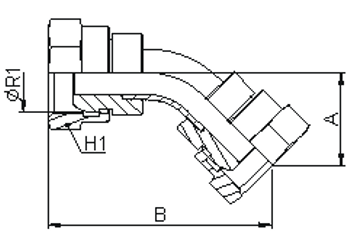

| Vöruheiti | Lengd A mm | Lengd B mm | Lykilmál H1 | Gengjur BSP R1 | Vörunúmer |
|---|---|---|---|---|---|
| Sveighné 45° F 1/4″ | 20 | 47 | 18 | 1/4 | 10451204-04 |
| Sveighné 45° F 3/8″ | 22 | 53 | 22 | 3/8 | 10451206-06 |
| Sveighné 45° F 1/2″ | 27 | 60 | 27 | 1/2 | 10451208-08 |
| Sveighné 45° F 3/4″ | 30 | 76 | 32 | 3/4 | 10451212-12 |
| Sveighné 45° F 1″ | 32 | 90 | 36 | 1 | 10451216-16 |
| Sveighné 45° F 1-1/4″ | 50 | 1 1/4 | |||
| Sveighné 45° F 1-1/2″ | 55 | 1 1/2 | |||
| Sveighné 45° F 2″ | 70 | 2 |
