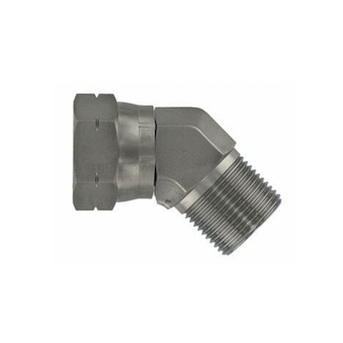

Sveighné 45° BSP M/F

Galvaniseraður fittings BSP.

Flokkar: Fittings, Lagnaefni, Stálfittings, Ýmis stálfittings Brand: PH Industrie

Available Options

Vörunúmer	Vöruheiti	Verð	Magn
10451204	Hné 45° M/F 1/4″
10451206	Hné 45° M/F 3/8″
10451208	Hné 45° M/F 1/2″
10451212	Hné 45° M/F 3/4″
10451216	Hné 45° M/F 1″
10451220	Hné 45° M/F 1-1/4″

Lýsing

Breyta

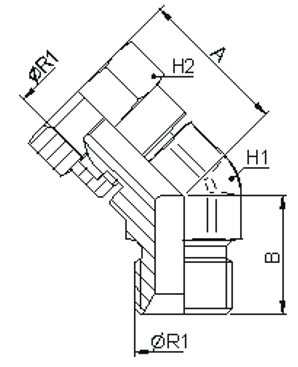

Vöruheiti	Lengd A mm	Lengd B mm	Lykilmál H1	Lykilmál H2	Gengjur BSP R1	Vörunúmer
Hné 45° M/F 1/8″	23.5	18	11	14	1/8
Hné 45° M/F 1/4″	26	21	14	18	1/4	10451204
Hné 45° M/F 3/8″	34	25	19	22	3/8	10451206
Hné 45° M/F 1/2″	36	28	22	27	1/2	10451208
Hné 45° M/F 3/4″	38.5	33	27	32	3/4	10451212
Hné 45° M/F 1″	41	37	33	38	1	10451216
Hné 45° M/F 1-1/4″	45.5	38	41	50	1 1/4	10451220
Hné 45° M/F 1-1/2″	58	45.2	48	60	1 1/2
