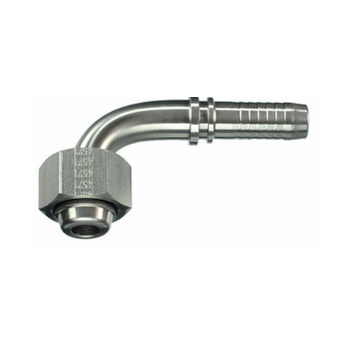

Tengi BSP F 90° - ryðfrí
90° slöngutengi með 60° þéttisæti og BSP ró.
Flokkar: Lagnaefni, Ryðfrí tengi - háþrýst, Slöngutengi
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 82051004 | 90° tengi 1/4"x1/4" | ||
| 82051006 | 90° tengi 3/8"x3/8" | ||
| 82051008 | 90° tengi 1/2"x1/2" | ||
| 82051012 | 90° tengi 3/4"x3/4" | ||
| 82051016 | 90° tengi 1"x1" | ||
| 82051112 | 90° tengi 3/4"x1" | ||
| 82051020 | 90° tengi 1-1/4"x1-1/4" | ||
| 82051024 | 90° tengi 1-1/2"x1-1/2" | ||
| 82051032 | 90° tengi 2"x2" | ||
| 82051013 | 90° tengi 1/2"x3/4" |

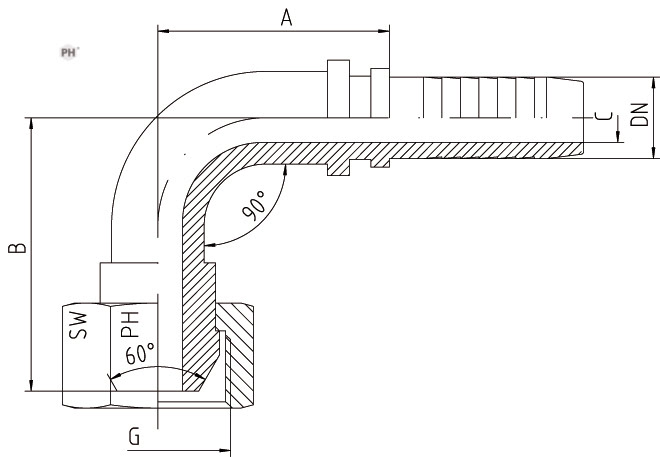

| Vöruheiti | Slöngustærð DN | Slöngustærð " | Gengjur G BSP F | Hæð A mm | Hæð B mm | Innanmál tengis C mm | Lykilmál SW | Vörunúmer |
|---|---|---|---|---|---|---|---|---|
| 90° tengi 3/16"x1/8" | 5 | 3/16 | 1/8 | 28 | 29 | 3 | 14 | |
| 90° tengi 1/4"x1/8" | 6 | 1/4 | 1/8 | 28.5 | 30 | 4 | 14 | |
| 90° tengi 3/16"x1/4" | 5 | 3/16 | 1/4 | 29 | 27.5 | 3 | 17 | |
| 90° tengi 1/4"x1/4" | 6 | 1/4 | 1/4 | 28.5 | 28 | 4 | 17 | 82051004 |
| 90° tengi 5/16"x1/4" | 8 | 5/16 | 1/4 | 36 | 36 | 5.5 | 19 | |
| 90° tengi 3/8"x1/4" | 10 | 3/8 | 1/4 | 34 | 39 | 6 | 19 | |
| 90° tengi 1/4"x3/8" | 6 | 1/4 | 3/8 | 29 | 26 | 4 | 19 | |
| 90° tengi 5/16"x3/8" | 8 | 5/16 | 3/8 | 33 | 34 | 5.5 | 19 | |
| 90° tengi 3/8"x3/8" | 10 | 3/8 | 3/8 | 33 | 34 | 7 | 19 | 82051006 |
| 90° tengi 1/2"x3/8" | 12 | 1/2 | 3/8 | 44 | 47.5 | 9 | 22 | |
| 90° tengi 3/8"x1/2" | 10 | 3/8 | 1/2 | 44 | 42.5 | 7 | 27 | |
| 90° tengi 1/2"x1/2" | 12 | 1/2 | 1/2 | 44 | 42.5 | 9.5 | 27 | 82051008 |
| 90° tengi 5/8"x1/2" | 16 | 5/8 | 1/2 | 58 | 53 | 12.5 | 27 | |
| 90° tengi 1/2"x5/8" | 12 | 1/2 | 5/8 | 44 | 50.5 | 9.5 | 27 | |
| 90° tengi 5/8"x5/8" | 16 | 5/8 | 5/8 | 55 | 54 | 12.5 | 27 | |
| 90° tengi 1/2"x3/4" | 12 | 1/2 | 3/4 | 47.5 | 43 | 9.5 | 32 | |
| 90° tengi 5/8"x3/4" | 16 | 5/8 | 3/4 | 55 | 54 | 12.5 | 32 | |
| 90° tengi 3/4"x3/4" | 19 | 3/4 | 3/4 | 61 | 54 | 14.5 | 32 | 82051012 |
| 90° tengi 3/4"x1" | 19 | 3/4 | 1 | 78 | 69 | 14.5 | 41 | 82051112 |
| 90° tengi 1"x1" | 25 | 1 | 1 | 78 | 69 | 20 | 41 | 82051016 |
| 90° tengi 1"x1x1/4" | 25 | 1 | 1 1/4 | 82 | 81 | 20 | 50 | |
| 90° tengi 1-1/4"x1-1/4" | 31 | 1 1/4 | 1 1/4 | 87 | 81 | 25 | 50 | 82051020 |
| 90° tengi 1-1/4"x1-1/2" | 31 | 1 1/4 | 1 1/2 | 125 | 103 | 25 | 55 | |
| 90° tengi 1-1/2"x1-1/2" | 38 | 1 1/2 | 1 1/2 | 104 | 102 | 31 | 55 | 82051024 |
| 90° tengi 1-1/2"x2" | 38 | 1 1/2 | 2 | 124 | 120 | 31 | 70 | |
| 90° tengi 2"x2" | 51 | 2 | 2 | 142 | 133 | 40 | 70 | 82051032 |
