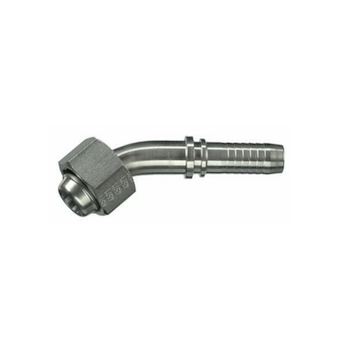

Tengi BSP F 45° - ryðfrí
45° slöngutengi með 60° þéttisæti og BSP ró.
Flokkar: Lagnaefni, Ryðfrí tengi - háþrýst, Slöngutengi
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 82061006 | 45° tengi 3/8"x3/8" | ||
| 82061008 | 45° tengi 1/2"x1/2" | ||
| 82061020 | 45° tengi 1-1/4"x1-1/4" |

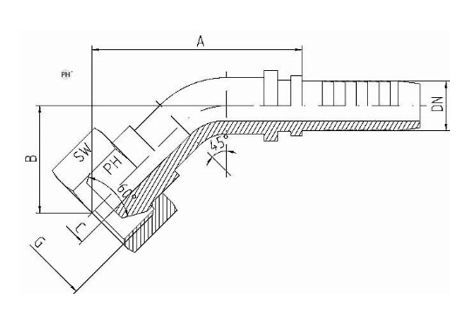

| Vöruheiti | Slöngustærð DN | Slöngustærð " | Gengjur G BSP F | Hæð A mm | Hæð B mm | Innanmál tengis C mm | Lykilmál SW | Vörunúmer |
|---|---|---|---|---|---|---|---|---|
| 45° tengi 3/16"x1/8" | 5 | 3/16 | 1/8 | 37 | 16 | 3 | 14 | |
| 45° tengi 1/4"x1/8" | 6 | 1/4 | 1/8 | 39 | 16 | 4 | 14 | |
| 45° tengi 3/16"x1/4" | 5 | 3/16 | 1/4 | 3 | 17 | |||
| 45° tengi 1/4"x1/4" | 6 | 1/4 | 1/4 | 36.5 | 14.5 | 4 | 17 | |
| 45° tengi 5/16"x1/4" | 8 | 5/16 | 1/4 | 47 | 20 | 5.5 | 19 | |
| 45° tengi 3/8"x1/4" | 10 | 3/8 | 1/4 | 44 | 22.5 | 6 | 19 | |
| 45° tengi 1/4"x3/8" | 6 | 1/4 | 3/8 | 34 | 16 | 4 | 19 | |
| 45° tengi 5/16"x3/8" | 8 | 5/16 | 3/8 | 40 | 15 | 5.5 | 19 | |
| 45° tengi 3/8"x3/8" | 10 | 3/8 | 3/8 | 40 | 15 | 7 | 19 | 82061006 |
| 45° tengi 1/2"x3/8" | 12 | 1/2 | 3/8 | 58.5 | 25.5 | 9.5 | 22 | |
| 45° tengi 3/8"x1/2" | 10 | 3/8 | 1/2 | 54 | 20.5 | 7 | 27 | |
| 45° tengi 1/2"x1/2" | 12 | 1/2 | 1/2 | 54 | 20.5 | 9.5 | 27 | 82061008 |
| 45° tengi 5/8"x1/2" | 16 | 5/8 | 1/2 | 64 | 27 | 12.5 | 27 | |
| 45° tengi 1/2"x5/8" | 12 | 1/2 | 5/8 | 64.5 | 29 | 9.5 | 27 | |
| 45° tengi 5/8"x5/8" | 16 | 5/8 | 5/8 | 68 | 28 | 12.5 | 27 | |
| 45° tengi 1/2"x3/4" | 12 | 1/2 | 3/4 | 60 | 23 | 9 | 32 | |
| 45° tengi 5/8"x3/4" | 16 | 5/8 | 3/4 | 62.5 | 28 | 12.5 | 32 | |
| 45° tengi 3/4"x3/4" | 19 | 3/4 | 3/4 | 70 | 30 | 14.5 | 32 | |
| 45° tengi 3/4"x1" | 19 | 3/4 | 1 | 77 | 26 | 14.5 | 41 | |
| 45° tengi 1"x1" | 25 | 1 | 1 | 95 | 39.5 | 20 | 41 | |
| 45° tengi 1"x1-1/4" | 25 | 1 | 1 1/4 | 94 | 40 | 20 | 50 | |
| 45° tengi 1-1/4"x1-1/4" | 31 | 1 1/4 | 1 1/4 | 100 | 40 | 25 | 50 | 82061020 |
| 45° tengi 1-1/4"x1-1/2" | 31 | 1 1/4 | 1 1/2 | 145 | 53 | 25 | 55 | |
| 45° tengi 1-1/2"x1-1/2" | 38 | 1 1/2 | 1 1/2 | 115 | 55 | 31 | 55 | |
| 45° tengi 1-1/2"x2" | 38 | 1 1/2 | 2 | 143 | 60 | 31 | 70 | |
| 45° tengi 2"x2" | 51 | 2 | 2 | 149 | 57 | 40 | 70 |
