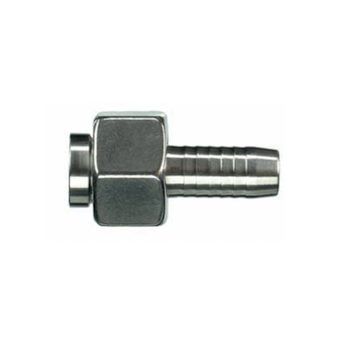

Tengi "FlatFace" BSP F - ryðfrí
Slöngutengi með BSP hlaupró með sléttum botni.
Flokkar: Lagnaefni, Ryðfrí tengi - háþrýst, Slöngutengi
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 82003008 | Tengi 1/2″x1/2″ | ||
| 82003012 | Tengi 3/4″x3/4″ | ||
| 82003106 | Tengi 3/8″x1/2″ | ||
| 82003108 | Tengi 1/2″x3/4″ | ||
| 82003107 | Tengi 3/8″x1/2″ - slétt |

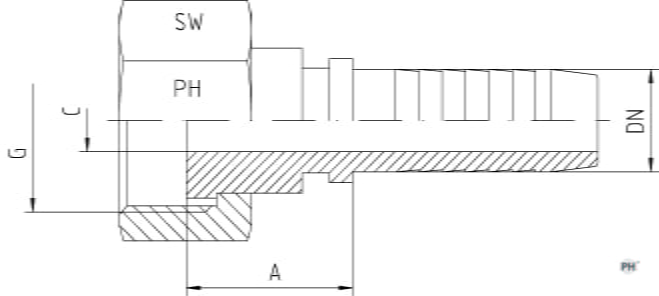

| Vöruheiti | Slöngustærð DN | Slöngustærð „ | Gengjur G BSP F | Hæð A mm | Innanmál tengis C mm | Lykilmál SW | Vörunúmer |
|---|---|---|---|---|---|---|---|
| Tengi 3/16″x1/8″ | 5 | 3/16 | 1/8 | 13.5 | 3 | 14 | |
| Tengi 1/4″x1/8″ | 6 | 1/4 | 1/8 | 13.5 | 4 | 14 | |
| Tengi 3/16″x1/4″ | 5 | 3/16 | 1/4 | 14.5 | 3 | 17 | |
| Tengi 1/4″x1/4″ | 6 | 1/4 | 1/4 | 16.5 | 4 | 17 | |
| Tengi 5/16″x1/4″ | 8 | 5/16 | 1/4 | 16.5 | 5 | 17 | |
| Tengi 3/8″x1/4″ | 10 | 3/8 | 1/4 | 17 | 4 | 19 | |
| Tengi 1/4″x3/8″ | 6 | 1/4 | 3/8 | 17 | 4 | 19 | |
| Tengi 5/16″x3/8″ | 8 | 5/16 | 3/8 | 17.5 | 5.5 | 19 | |
| Tengi 3/8″x3/8″ | 10 | 3/8 | 3/8 | 17.5 | 7 | 19 | |
| Tengi 1/2″x3/8″ | 12 | 1/2 | 3/8 | 20.5 | 8 | 19 | |
| Tengi 1/4″x1/2″ | 6 | 1/4 | 1/2 | 20.5 | 4 | 27 | |
| Tengi 5/16″x1/2″ | 8 | 5/16 | 1/2 | 16.5 | 5.5 | 27 | |
| Tengi 3/8″x1/2″ | 10 | 3/8 | 1/2 | 16.5 | 7 | 27 | 82003106 |
| Tengi 1/2″x1/2″ | 12 | 1/2 | 1/2 | 19.5 | 9.5 | 27 | 82003008 |
| Tengi 1/2″x5/8″ | 12 | 1/2 | 5/8 | 20 | 9.5 | 27 | |
| Tengi 5/8″x5/8″ | 16 | 5/8 | 5/8 | 19 | 12.5 | 27 | |
| Tengi 1/2″x3/4″ | 12 | 1/2 | 3/4 | 19.5 | 9.5 | 32 | 82003108 |
| Tengi 5/8″x3/4″ | 16 | 5/8 | 3/4 | 20 | 12.5 | 32 | |
| Tengi 3/4″x3/4″ | 19 | 3/4 | 3/4 | 21.5 | 14.5 | 32 | 82003012 |
| Tengi 3/4″x1″ | 19 | 3/4 | 1 | 22 | 14.5 | 41 | |
| Tengi 1″x1″ | 25 | 1 | 1 | 23.5 | 20 | 41 | |
| Tengi 3/4″x1-1/4″ | 19 | 3/4 | 1 1/4 | 14.5 | 50 | ||
| Tengi 1″x1-1/4″ | 25 | 1 | 1 1/4 | 26 | 20 | 50 | |
| Tengi 1-1/4″x1-1/4″ | 31 | 1 1/4 | 1 1/4 | 23.5 | 25.5 | 50 | |
| Tengi 1-1/4″x1-1/2″ | 31 | 1 1/4 | 1 1/2 | 41 | 25.5 | 55 | |
| Tengi 1-1/2″x1-1/2″ | 38 | 1 1/2 | 1 1/2 | 41 | 31.5 | 55 | |
| Tengi 2″x2″ | 51 | 2 | 2 | 28 | 43 | 70 | |
| Tengi 2-3/8″x2-1/2″ | 60 | 2 3/8 | 2 1/2 |
