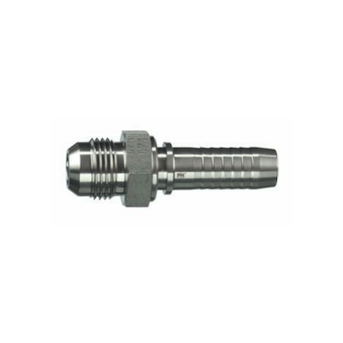

Tengi JIC M - ryðfrí

Slöngutengi með 37° þéttisæti og JIC nippli.

Flokkar: Lagnaefni, Ryðfrí tengi - háþrýst, Slöngutengi Brand: PH Industrie

Available Options

Vörunúmer	Vöruheiti	Verð	Magn
82020004	Tengi 1/4″x7/16″
82020006	Tengi 3/8″x9/16″
82020008	Tengi 1/2″x3/4″
82020012	Tengi 3/4″x1-1/16″
82020106	Tengi 3/8″x3/4″
82020108	Tengi 1/2″x7/8″
82020104	Tengi 1/4″x1/2″
82020204	Tengi 1/4″x9/16″
82020212	Tengi 3/4″x1-5/16″
82020016	Tengi 1″x1-5/16″

Lýsing

Breyta

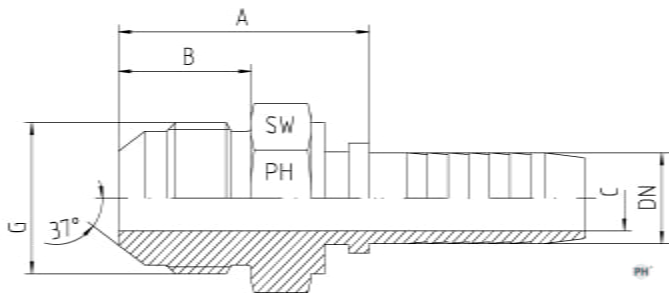

Vöruheiti	Slöngustærð DN	Slöngustærð „	Gengjur G JIC M	Hæð A mm	Hæð B mm	Innanmál tengis C mm	Lykilmál SW	Vörunúmer
Tengi 3/16″x7/16″	5	3/16	7/16	21	14	3	12
Tengi 1/4″x7/16″	6	1/4	7/16	27.5	14	4	14	82020004
Tengi 3/16″x1/2″	5	3/16	1/2	21	14	3	14
Tengi 1/4″x1/2″	6	1/4	1/2	27.5	14	4	17	82020104
Tengi 5/16″x1/2″	8	5/16	1/2	27.5	14	5.5	17
Tengi 3/16″x9/16″	5	3/16	9/16	22	14.1	3	17
Tengi 1/4″x9/16″	6	1/4	9/16	29.5	14.1	4	17	82020204
Tengi 5/16″x9/16″	8	5/16	9/16	29.5	14.1	5.5	17
Tengi 3/8″x9/16″	10	3/8	9/16	29.5	14.1	7	17	82020006
Tengi 3/8″x3/4″	10	3/8	3/4	33	16.7	7	22	82020106
Tengi 1/2″x3/4″	12	1/2	3/4	31	16.7	9.5	22	82020008
Tengi 3/8″x7/8″	10	3/8	7/8	36	19.3	7	24
Tengi 1/2″x7/8″	12	1/2	7/8	36.5	19.3	9.5	24	82020108
Tengi 5/8″x7/8″	16	5/8	7/8	37	19.3	12.5	24
Tengi 1/2″x1-1/16″	12	1/2	1 1/16	38.5	22	9.5	27
Tengi 5/8″x1-1/16″	16	5/8	1 1/16	40	22	12.5	27
Tengi 3/4″x1-1/16″	19	3/4	1 1/16	43	22	14.5	27	82020012
Tengi 3/4″x1-5/16″	19	3/4	1 5/16	44	23.1	14.5	36	82020212
Tengi 1″x1-5/16″	25	1	1 5/16	44	23.1	20	36	82020016
Tengi 1″x1-5/8″	25	1	1 5/8	50	24.4	20	46
Tengi 1-1/4″x1-5/8″	31	1 1/4	1 5/8	48	24.4	25.5	46
Tengi 1-1/4″x1-7/8″	31	1 1/4	1 7/8	51	27.5	25.5	50
Tengi 1-1/2″x1-7/8″	38	1 1/2	1 7/8	53.5	27.5	31.5	50
Tengi 1-1/2″x2-1/2″	38	1 1/2	2 1/2		33.9	31.5	65
Tengi 2″x2-1/2″	51	2	2 1/2	63	33.9	43	65
