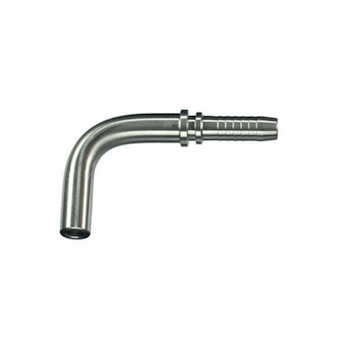

Name: Tengi STP 90° - ryðfrí
Brand: PH Industrie
SKU: SKU-0704
Availability: InStock

Vörunúmer

Vöruheiti

Verð

Magn

82095004

90° tengi 1/4"x8mm

82095005

90° tengi 1/4"10mm

82095006

90° tengi 3/8"x12mm

82095104

90° tengi 1/4"x6mm

82095106

90° tengi 3/8"x10mm

82095108

90° tengi 5/8"x18mm

82095008

90° tengi 1/2"x15mm

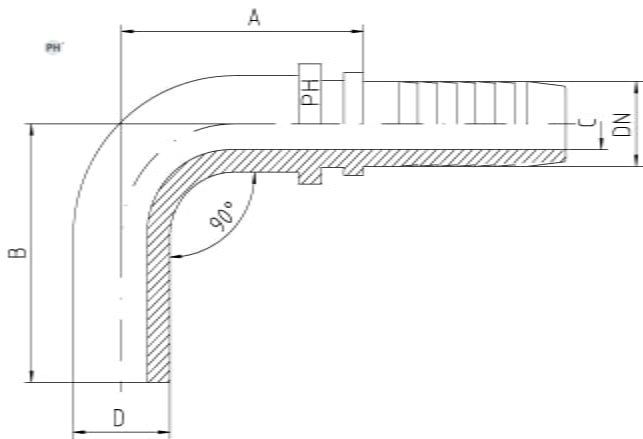

Vöruheiti	Slöngustærð DN	Slöngustærð "	Utanmál D mm	Hæð A mm	Hæð B mm	Innanmál tengis C mm	Vörunúmer
Fyrir L - gerð
90° tengi 3/16"x6mm	5	3/16	6	28.5	36	3
90° tengi 1/4"x6mm	6	1/4	6	29	35.5	4	82095104
90° tengi 1/4"x8mm	6	1/4	8	38.5	37	4	82095004
90° tengi 1/4"x10mm	6	1/4	10	43	40	4
90° tengi 5/16"10mm	8	5/16	10	41	41.5	5.5
90° tengi 3/8"x10mm	10	3/8	10	41	41.5	7	82095106
90° tengi 5/16"x12mm	8	5/16	12	48	45	5.5
90° tengi 3/8"x12mm	10	3/8	12	48	45	7	82095006
90° tengi 1/2"x12mm	12	1/2	12	46.5	46	8
90° tengi 1/2"x15mm	12	1/2	15	53	49	9.5	82095008
90° tengi 5/8"x18mm	16	5/8	18	59	65	12.5	82095108
90° tengi 3/4"x22mm	19	3/4	22	75	75.5	14.5
90° tengi 1"x28mm	25	1	28	85	98	20
90° tengi 1-1/4"x35mm	31	1 1/4	35	112	127	25.5
90° tengi 1-1/2"x42mm	38	1 1/2	42			31.5
Fyrir S - gerð
90° tengi 3/16"x6mm	5	3/16	6	28.5	36	3
90° tengi 1/4"x6mm	6	1/4	6	29	35.5	4
90° tengi 1/4"x8mm	6	1/4	8	38.5	38.5	4
90° tengi 1/4"10mm	6	1/4	10	43	40	4	82095005
90° tengi 5/16"x10mm	8	5/16	10	41	41.5	5.5
90° tengi 3/8"x10mm	10	3/8	10	41	41.5	7
90° tengi 5/16"x12mm	8	5/16	12	48	45	5.5
90° tengi 3/8"x12mm	10	3/8	12	48	45	7
90° tengi 3/8"x14mm	10	3/8	14			7
90° tengi 1/2"x12mm	12	1/2	16	60.5	58.5	9.5
90° tengi 5/8"x16mm	16	5/8	20	73	66	12.5
90° tengi 3/4"x25mm	19	3/4	25	79	84	14.5
90° tengi 1"x30mm	25	1	30			20
90° tengi 1-1/4"x38mm	31	1 1/4	38			25.5
Aukahlutir
Tengi 82 3/8" banjó							82291006
Bolti, banjó							82292114
