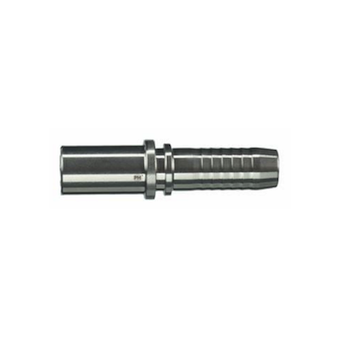

Tengi STP beint - ryðfrí
Flokkar: Lagnaefni, Ryðfrí tengi - háþrýst, Slöngutengi
Brand: PH Industrie
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| 82092008 | Tengi 1/2″x12mm | ||
| 82093004 | Tengi 1/4″x8mm | ||
| 82093006 | Tengi 3/8″x12mm | ||
| 82093008 | Tengi 1/2″x15mm | ||
| 82093010 | Tengi 5/8″x18mm | ||
| 82093012 | Tengi 3/4″x22mm | ||
| 82093016 | Tengi 1″x28mm | ||
| 82093104 | Tengi 1/4″x6mm | ||
| 82093106 | Tengi 3/8″x10mm | ||
| 82093108 | Tengi 1/2″x18mm | ||
| 82093204 | Tengi 1/4″x12mm | ||
| 82094004 | Tengi 1/4″x10mm | ||
| 82094006 | Tengi 3/8″x14mm | ||
| 82094008 | Tengi 1/2″x16mm | ||
| 82094010 | Tengi 5/8″x20mm | ||
| 82094012 | Tengi 3/4″x25mm | ||
| 82094016 | Tengi 1″x30mm | ||
| 82094020 | Tengi 1-1/4″x38mm | ||
| 82094816 | Tengi 1″x25mm | ||
| 82094912 | Tengi 3/4″x20mm |

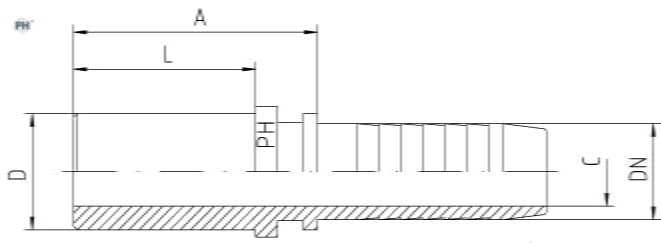

| Vöruheiti | Slöngustærð DN | Slöngustærð „ | Utanmál D mm | Hæð A mm | Innanmál tengis C mm | Hæð L mm | Vörunúmer |
|---|---|---|---|---|---|---|---|
| Fyrir L – Gerð | |||||||
| Tengi 3/16″x 6mm | 5 | 3/16 | 6 | 26.5 | 3 | 20 | |
| Tengi 1/4″x6mm | 6 | 1/4 | 6 | 28.5 | 4 | 20 | 82093104 |
| Tengi 3/16″x8mm | 5 | 3/16 | 8 | 28.5 | 3 | 22 | |
| Tengi 1/4″x8mm | 6 | 1/4 | 8 | 31 | 4 | 22 | 82093004 |
| Tengi 5/16″8mm | 8 | 5/16 | 8 | 31 | 5 | 23 | |
| Tengi 5/16″x10mm | 8 | 5/16 | 10 | 31.5 | 5.5 | 23 | |
| Tengi 3/8″x10mm | 10 | 3/8 | 10 | 34 | 7 | 25 | 82093106 |
| Tengi 3/8″x12mm | 10 | 3/8 | 12 | 34 | 7 | 25 | 82093006 |
| Tengi 1/2″x12mm | 12 | 1/2 | 12 | 34 | 9 | 25 | 82092008 |
| Tengi 3/8″x15mm | 10 | 3/8 | 15 | 36.5 | 7 | 28 | |
| Tengi 1/2″x15mm | 12 | 1/2 | 15 | 33 | 9.5 | 25 | 82093008 |
| Tengi 1/2″x18mm | 12 | 1/2 | 18 | 32 | 9.5 | 27 | 82093108 |
| Tengi 5/8″x18mm | 16 | 5/8 | 18 | 35.5 | 12.5 | 27 | 82093010 |
| Tengi 5/8″x22mm | 16 | 5/8 | 22 | 36.5 | 12.5 | 27 | |
| Tengi 3/4″x22mm | 19 | 3/4 | 22 | 38 | 14.5 | 27 | 82093012 |
| Tengi 1″x28mm | 25 | 1 | 28 | 41.5 | 20 | 30 | 82093016 |
| Tengi 1-1/4″x35mm | 31 | 1 1/4 | 35 | 47 | 25.5 | 36 | |
| Tengi 1-1/2″x42mm | 38 | 1 1/2 | 42 | 47 | 31.5 | 36 | |
| Fyrir S – gerð | |||||||
| Tengi 3/16″x6mm | 5 | 3/16 | 6 | 26.5 | 3 | 20 | |
| Tengi 1/4″x6mm | 6 | 1/4 | 6 | 28.5 | 4 | 20 | |
| Tengi 1/4″x8mm | 6 | 1/4 | 8 | 31 | 4 | 22 | |
| Tengi 5/16″x8mm | 8 | 5/16 | 8 | 31 | 5 | 23 | |
| Tengi 1/4″x10mm | 6 | 1/4 | 10 | 33.5 | 4 | 24 | 82094004 |
| Tengi 5/16″x10mm | 8 | 5/16 | 10 | 31.5 | 5.5 | 23 | |
| Tengi 3/8″x10mm | 10 | 3/8 | 10 | 34 | 7 | 25 | |
| Tengi 1/4″x12mm | 6 | 1/4 | 12 | 35.5 | 4 | 26 | 82093204 |
| Tengi 5/16″x12mm | 8 | 5/16 | 12 | 35.5 | 5.5 | 26 | |
| Tengi 3/8″x12mm | 10 | 3/8 | 12 | 34 | 7 | 25 | |
| Tengi 1/2″x12mm | 12 | 1/2 | 12 | 34 | 9 | 25 | |
| Tengi 3/8″x14mm | 10 | 3/8 | 14 | 35.5 | 7 | 28 | 82094006 |
| Tengi 1/2″x16mm | 12 | 1/2 | 16 | 38.5 | 9.5 | 30 | 82094008 |
| Tengi 1/2″x20mm | 12 | 1/2 | 20 | 42 | 9.5 | 36 | |
| Tengi 5/8″x20mm | 16 | 5/8 | 20 | 45 | 12.5 | 36 | 82094010 |
| Tengi 3/4″x20mm | 19 | 3/4 | 20 | 43 | 14.5 | 31 | 82094912 |
| Tengi 3/4″x25mm | 19 | 3/4 | 25 | 51 | 14.5 | 40 | 82094012 |
| Tengi 1″x25mm | 25 | 1 | 25 | 46 | 18 | 34.5 | 82094816 |
| Tengi 1″x30mm | 25 | 1 | 30 | 56 | 20 | 44 | 82094016 |
| Tengi 1-1/4″x38mm | 31 | 1 1/4 | 38 | 62 | 25.5 | 50 | 82094020 |
