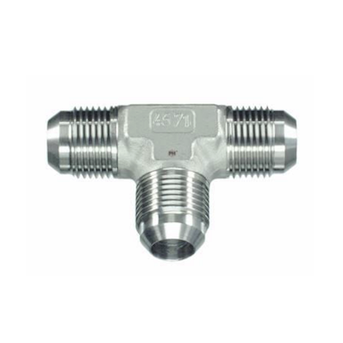

Té M/M/M JIC
Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).
Flokkar: Fittings, JIC fittings, Lagnaefni, Stálfittings
Brand: HANSA-FLEX, Parker
Available Options
| Vörunúmer | Vöruheiti | Verð | Magn |
|---|---|---|---|
| GS12100404 | Té M 7/16" | ||
| GS12100505 | Té M 1/2" | ||
| GS12100606 | Té M 9/16" | ||
| GS12100808 | Té M 3/4" | ||
| GS12101010 | Té M 7/8" | ||
| GS12101212 | Té M 1-1/16" | ||
| GS12101616 | Té M 1-5/16" | ||
| GS12102020 | Té M 1-5/8" | ||
| GS12102424 | Té M 1-7/8" | ||
| GS12103232 | Té M 2-1/2" |

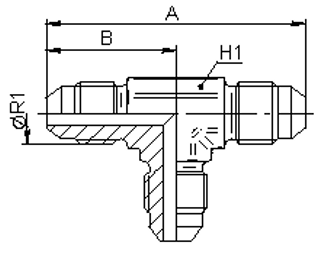

| Vöruheiti | Lengd A mm | Lengd B mm | Lykilmál H1 | Gengjur JIC R1 | Vörunúmer |
|---|---|---|---|---|---|
| Té M 7/16″ | 45 | 22.5 | 11 | 7/16 | GS12100404 |
| Té M 1/2″ | 48 | 24 | 13 | 1/2 | GS12100505 |
| Té M 9/16″ | 54 | 27 | 14 | 9/16 | GS12100606 |
| Té M 3/4″ | 64 | 32 | 19 | 3/4 | GS12100808 |
| Té M 7/8″ | 74 | 37 | 22 | 7/8 | GS12101010 |
| Té M 1-1/16″ | 84 | 42 | 27 | 1 1/16 | GS12101212 |
| Té M 1-5/16″ | 92 | 46 | 33 | 1 5/16 | GS12101616 |
| Té M 1-5/8″ | 105 | 52.5 | 41 | 1 5/8 | GS12102020 |
| Té M 1-7/8″ | 118 | 59 | 48 | 1 7/8 | GS12102424 |
| Té M 2-1/2″ | 155 | 77.5 | 65 | 2 1/2 | GS12103232 |
